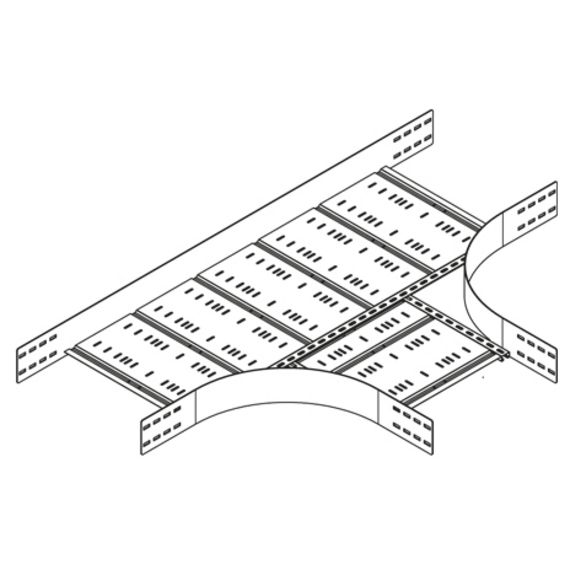

WPRA 100 wide-span cable tray branch, height = 100 mm

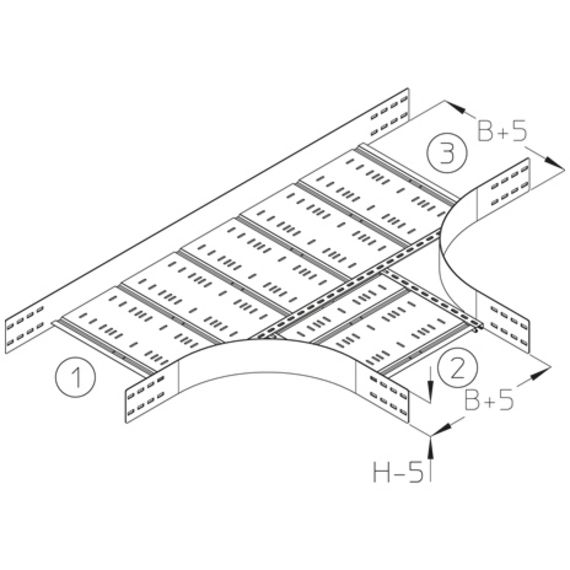

The T-shaped wide-span cable tray branch WPRA 100 with integrated side connectors allows the direction of cable routing to be changed in the form of a branch. It is suitable for wide-span cable trays with rails 100 mm high and is 200 to 600 mm side. It is used between two wide-span cable trays. The connection tray can then be pushed in with a VB floor connector. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met. Special designs with different connection widths ①, ②, ③ or different radii R can be requested.

Formed components must be supported at all sides.
