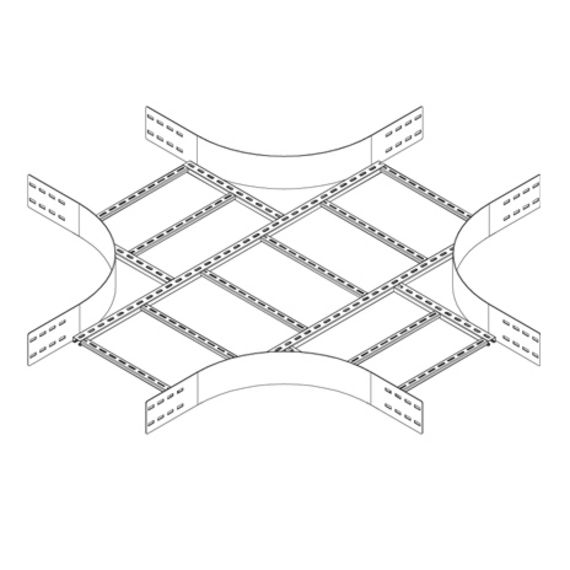

WPLK 150 wide-span crossing, height = 150 mm

wide-span crossing for horizontal change of direction, with integrated connectors

Formed components must be supported at all sides. This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
heightwidthradiusweight
WPLK 150-20F150 mm200 mm450 mm25.42 kg
WPLK 150-30F150 mm300 mm450 mm26.48 kg
WPLK 150-40F150 mm400 mm450 mm27.45 kg
WPLK 150-50F150 mm500 mm450 mm28.42 kg
WPLK 150-60F150 mm600 mm450 mm29.78 kg
Stainless steel, according to ASTM 304 / BS 304 S 3
heightwidthradiusweight
WPLK 150-20E150 mm200 mm450 mm24 kg
WPLK 150-30E150 mm300 mm450 mm25 kg
WPLK 150-40E150 mm400 mm450 mm25.92 kg
WPLK 150-50E150 mm500 mm450 mm26.84 kg
WPLK 150-60E150 mm600 mm450 mm28.12 kg
