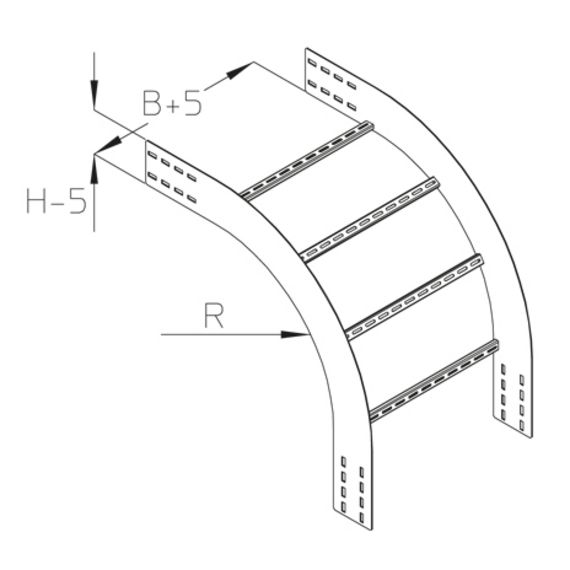

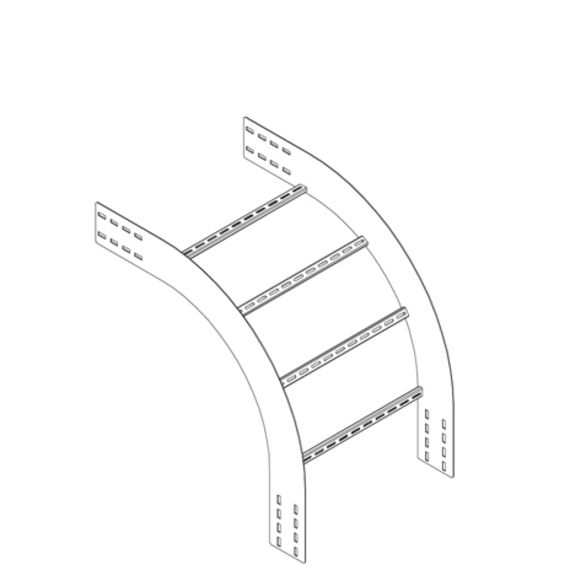

wide-span outside riser 90º for vertical change of direction, with integrated connectors
Formed components must be supported at all sides.
Stainless steel, according to ASTM 304 / BS 304 S 3
| height | width | radius | weight | ||
|---|---|---|---|---|---|
| WPLF 100-20E | 100 mm | 200 mm | 450 mm | 6.84 kg | |
| WPLF 100-30E | 100 mm | 300 mm | 450 mm | 7.12 kg | |
| WPLF 100-40E | 100 mm | 400 mm | 450 mm | 7.40 kg | |
| WPLF 100-50E | 100 mm | 500 mm | 450 mm | 7.67 kg | |
| WPLF 100-60E | 100 mm | 600 mm | 450 mm | 7.95 kg |
