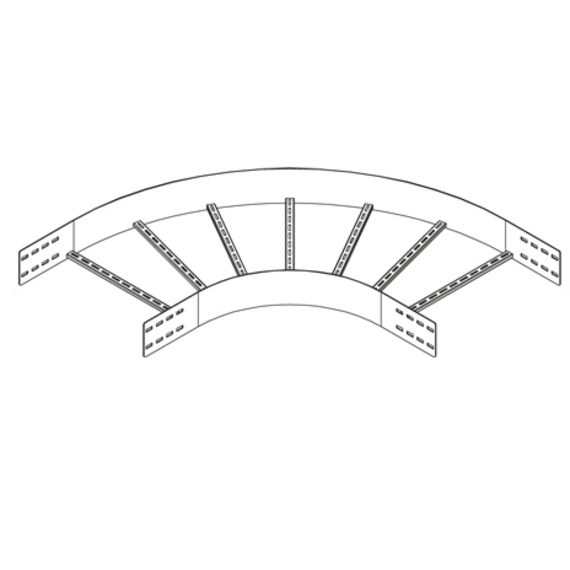

wide-span bend 90º for horizontal change of direction, with integrated connectors
Formed components must be supported at all sides.
Stainless steel, according to ASTM 304 / BS 304 S 3
| height | width | radius | weight | ||
|---|---|---|---|---|---|
| WPLB 100-20E | 100 mm | 200 mm | 450 mm | 7.28 kg | |
| WPLB 100-30E | 100 mm | 300 mm | 450 mm | 7.98 kg | |
| WPLB 100-40E | 100 mm | 400 mm | 450 mm | 8.96 kg | |
| WPLB 100-50E | 100 mm | 500 mm | 450 mm | 10.08 kg | |
| WPLB 100-60E | 100 mm | 600 mm | 450 mm | 10.91 kg |
