The WLRB 200 wide span cable tray bends with integrated connectors allow horizontal directional changes of cable routing by 90°. They are suitable for WLR 200 wide span cable trays and have widths from 200 to 600 mm. The bend is inserted into the wide span cable tray with a VB floor connector and screwed in place. The connection trough is then mounted on the bend. Different materials and surfaces ensure that the corrosion protection requirements of a wide variety of applications are met.
- Allows horizontal change of direction of the cable guide by 90°
- Cable gentle guidance
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

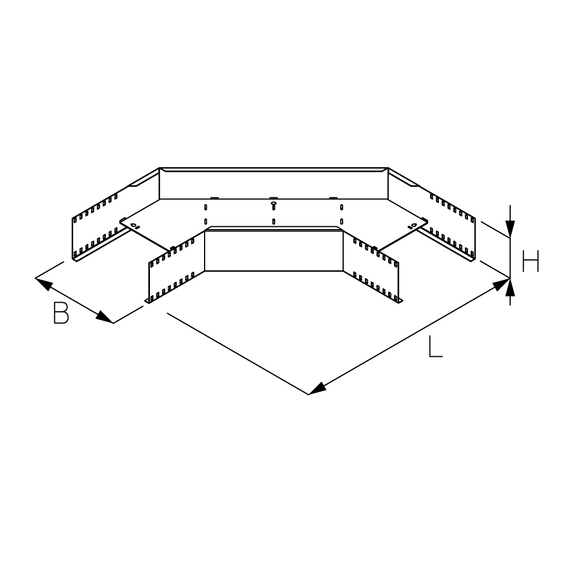

| height | width | length | weight | ||
|---|---|---|---|---|---|
| WLRB 200-20F | 203,5 mm | 200 mm | 952 mm | 18,15 kg | |
| WLRB 200-30F | 203,5 mm | 300 mm | 1052 mm | 20,33 kg | |
| WLRB 200-40F | 203,5 mm | 400 mm | 1152 mm | 22,13 kg | |
| WLRB 200-50F | 203,5 mm | 500 mm | 1252 mm | 24,42 kg | |
| WLRB 200-60F | 203,5 mm | 600 mm | 1352 mm | 26,81 kg |
