KDSL bracket support, light-duty bracket support

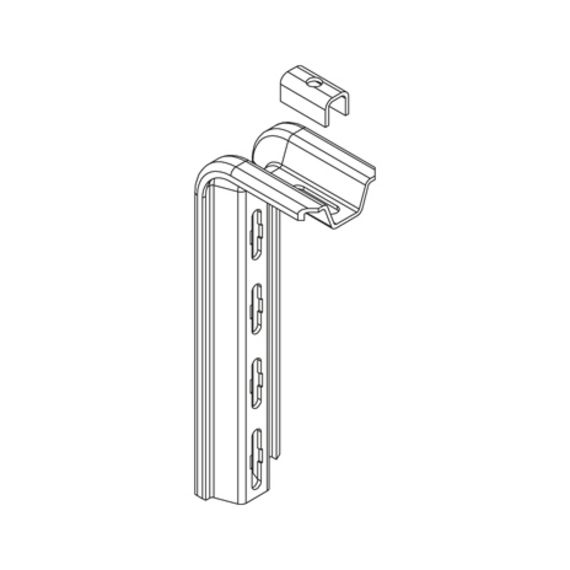

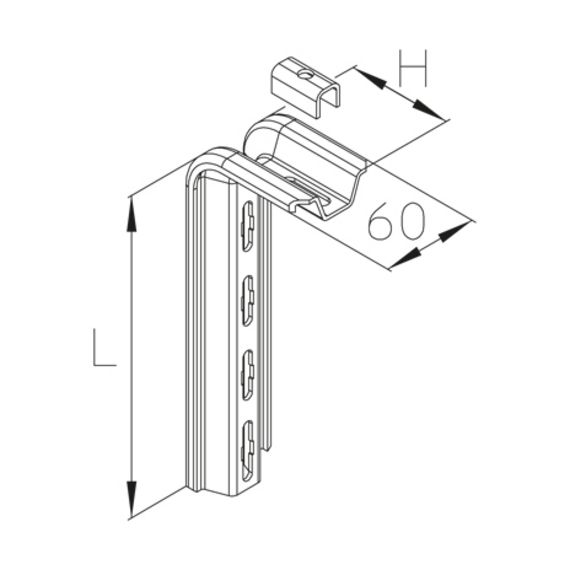

Ceiling bracket, light version made of W-/trapezoidal profile 60x20x2.5 mm, perforated in the center. Certified according to DIN EN 61537. For mounting on horizontal ceilings. support distance max. 1.2 m.

F_D/P: coefficient for calculation of the dowel load F_D with effective bracket load P respectively the sum of effective bracket loads. Load specifications only apply for mounting as ceiling bracket. The spacer KSL-SP must be fitted when installing the ceiling to prevent deformation of the profile due to frictional locking of the fastening screw.
