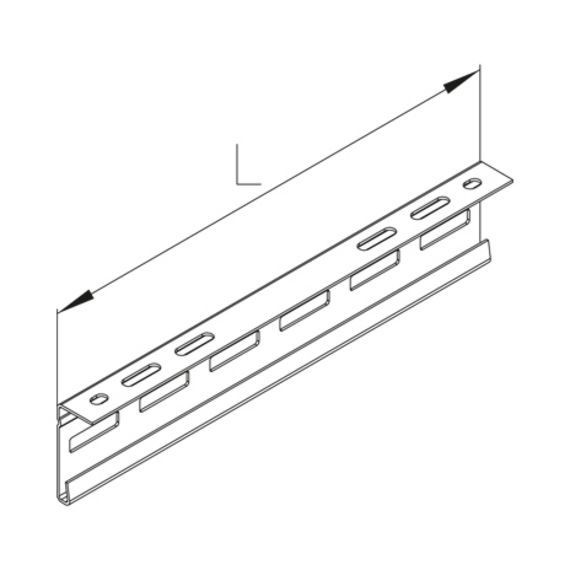

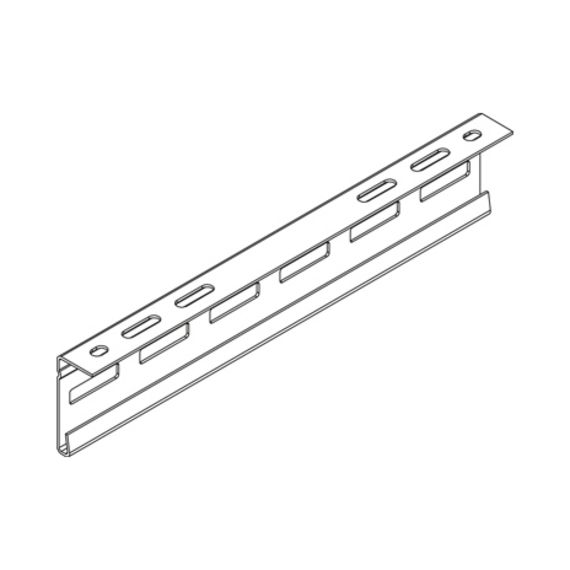

Wall bracket, standard version. For mounting on walls.
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| height | width | length | weight | ||
|---|---|---|---|---|---|
| KWW 020F | 60 mm | 24,5 mm | 200 mm | 0.23 kg | |
| KWW 030F | 60 mm | 24,5 mm | 300 mm | 0.35 kg | |
| KWW 040F | 60 mm | 24,5 mm | 400 mm | 0.47 kg | |
| KWW 050F | 60 mm | 24,5 mm | 500 mm | 0.58 kg | |
| KWW 060F | 60 mm | 24,5 mm | 600 mm | 0.70 kg | |
| KWW 070F | 60 mm | 24,5 mm | 700 mm | 0.82 kg | |
| KWW 080F | 60 mm | 24,5 mm | 800 mm | 0.93 kg |
