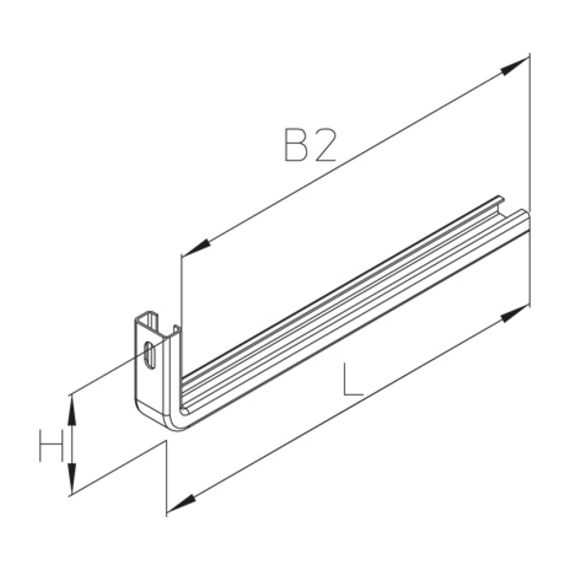

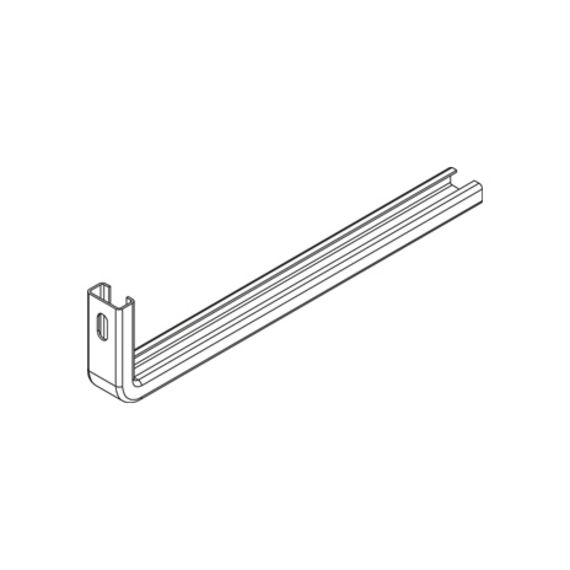

Wall bracket, light-duty version, made of profile rail 30x15 mm, slot width 16 mm. For mounting on walls.
FD/P: coefficient for calculation of the dowel load FD with effective bracket load P respectively the sum of effective bracket loads. This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| height | width | width | length | PmaxMaximum load | FD/P dowel-to-anchor load | weight | ||
|---|---|---|---|---|---|---|---|---|
| KWLL 010S | 80 mm | 100 mm | 110 mm | 125 mm | 0.3 kN | 2.0 | 0.13 kg | |
| KWLL 020S | 80 mm | 200 mm | 210 mm | 225 mm | 0.3 kN | 3.0 | 0.20 kg | |
| KWLL 030S | 80 mm | 300 mm | 310 mm | 325 mm | 0.3 kN | 4.0 | 0.28 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| height | width | width | length | PmaxMaximum load | FD/P dowel-to-anchor load | weight | ||
|---|---|---|---|---|---|---|---|---|
| KWLL 010E | 80 mm | 100 mm | 110 mm | 125 mm | 0.3 kN | 2.0 | 0.13 kg | |
| KWLL 020E | 80 mm | 200 mm | 210 mm | 225 mm | 0.3 kN | 3.0 | 0.21 kg | |
| KWLL 030E | 80 mm | 300 mm | 310 mm | 325 mm | 0.3 kN | 4.0 | 0.28 kg |
Downloads
PDF | 19 MB
PDF | 29 MB
PDF | 6 MB Contact us
