Installation of covers in outdoor areas requires additional provisions against storm forces. Turning bolts are in no case sufficient as security provision.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

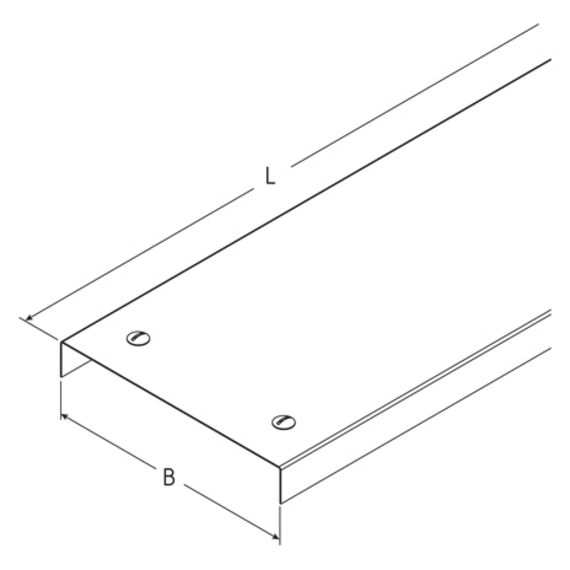

| width | length | weight | ||
|---|---|---|---|---|
| GIDR 06S | 60 mm | 3000 mm | 3.31 kg | |
| GIDR 12S | 120 mm | 3000 mm | 4.73 kg | |
| GIDR 20S | 200 mm | 3000 mm | 6.61 kg | |
| GIDR 30S | 300 mm | 3000 mm | 8.97 kg | |
| GIDR 40S | 400 mm | 3000 mm | 11.26 kg | |
| GIDR 50S | 500 mm | 3000 mm | 13.69 kg | |
| GIDR 60S | 600 mm | 3000 mm | 20.08 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | length | weight | ||
|---|---|---|---|---|
| GIDR 06F | 60 mm | 3000 mm | 3.53 kg | |
| GIDR 12F | 120 mm | 3000 mm | 5.05 kg | |
| GIDR 20F | 200 mm | 3000 mm | 7.07 kg | |
| GIDR 30F | 300 mm | 3000 mm | 9.53 kg | |
| GIDR 40F | 400 mm | 3000 mm | 12.12 kg | |
| GIDR 50F | 500 mm | 3000 mm | 14.64 kg | |
| GIDR 60F | 600 mm | 3000 mm | 21.49 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | length | weight | ||
|---|---|---|---|---|
| GIDR 06E | 60 mm | 3000 mm | 3.33 kg | |
| GIDR 12E | 120 mm | 3000 mm | 4.75 kg | |
| GIDR 20E | 200 mm | 3000 mm | 6.65 kg | |
| GIDR 30E | 300 mm | 3000 mm | 9.03 kg | |
| GIDR 40E | 400 mm | 3000 mm | 11.40 kg | |
| GIDR 50E | 500 mm | 3000 mm | 13.77 kg | |
| GIDR 60E | 600 mm | 3000 mm | 20.22 kg |
