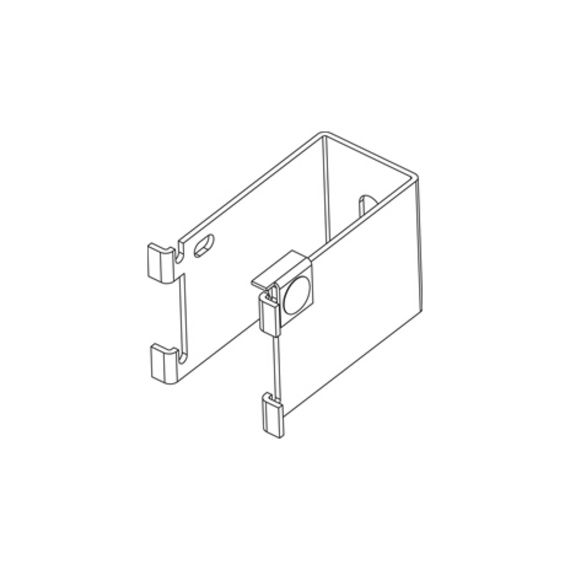

Spacer bar for horizontal-vertical wall fastening of mesh cable trays. Suitable for mounting on the longitudinal wires in the bottom of the mesh cablte trays G 50 and G 100 from a width of 316 mm. Two spacer bars are necessary for mounting.
The support distance is to be chosen according to the local conditions, maximum 1 m.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

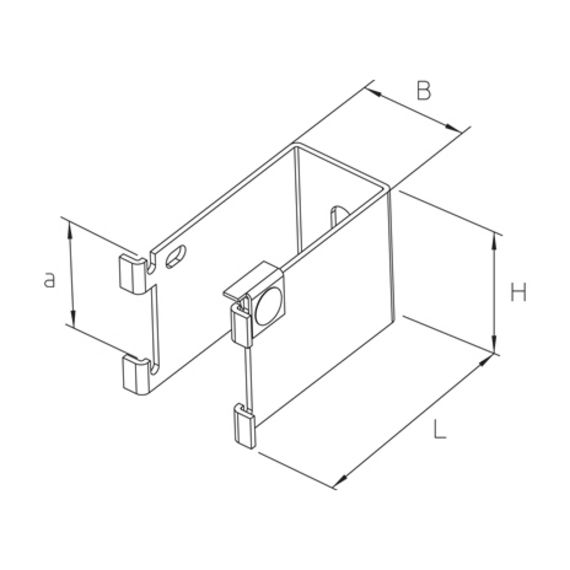

| height | width | length | a wire distance | weight | ||
|---|---|---|---|---|---|---|
| GBH 50S | 65 mm | 50 mm | 100 mm | 50 mm | 0.37 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| height | width | length | a wire distance | weight | ||
|---|---|---|---|---|---|---|
| GBH 50F | 65 mm | 50 mm | 100 mm | 50 mm | 0.34 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| height | width | length | a wire distance | weight | ||
|---|---|---|---|---|---|---|
| GBH 50E | 65 mm | 50 mm | 100 mm | 50 mm | 0.37 kg |
