Alternating alignment must be observed while mounting.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

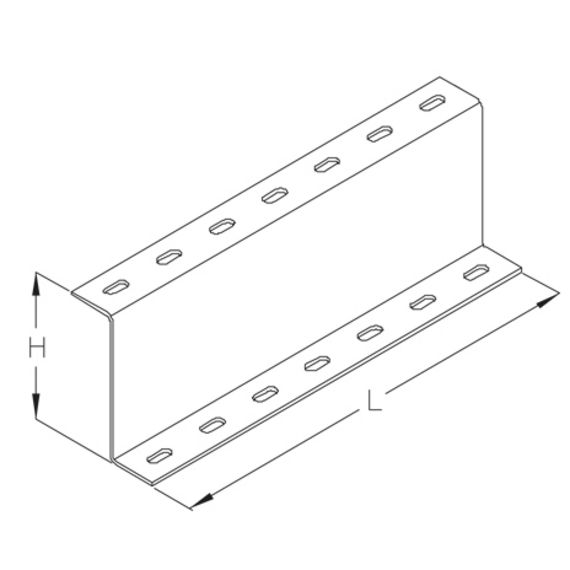

| height | length | t material thickness | weight | ||
|---|---|---|---|---|---|
| KHZ 80-01S | 80 mm | 100 mm | 3.00 mm | 0.32 kg | |
| KHZ 80-02S | 80 mm | 200 mm | 3.00 mm | 0.65 kg | |
| KHZ 80-03S | 80 mm | 300 mm | 3.00 mm | 0.98 kg | |
| KHZ 80-04S | 80 mm | 400 mm | 3.00 mm | 1.31 kg | |
| KHZ 80-05S | 80 mm | 500 mm | 3.00 mm | 1.64 kg | |
| KHZ 80-06S | 80 mm | 600 mm | 3.00 mm | 1.97 kg | |
| KHZ 80-30S | 80 mm | 3000 mm | 3.00 mm | 9.88 kg | |
| KHZ 100-01S | 100 mm | 100 mm | 3.00 mm | 0.37 kg | |
| KHZ 100-02S | 100 mm | 200 mm | 3.00 mm | 0.74 kg | |
| KHZ 100-03S | 100 mm | 300 mm | 3.00 mm | 1.12 kg | |
| KHZ 100-04S | 100 mm | 400 mm | 3.00 mm | 1.49 kg | |
| KHZ 100-05S | 100 mm | 500 mm | 3.00 mm | 1.86 kg | |
| KHZ 100-06S | 100 mm | 600 mm | 3.00 mm | 2.23 kg | |
| KHZ 100-30S | 100 mm | 3000 mm | 3.00 mm | 11.18 kg | |
| KHZ 120-01S | 120 mm | 100 mm | 3.00 mm | 0.4 kg | |
| KHZ 120-02S | 120 mm | 200 mm | 3.00 mm | 0.9 kg | |
| KHZ 120-03S | 120 mm | 300 mm | 3.00 mm | 1.3 kg | |
| KHZ 120-04S | 120 mm | 400 mm | 3.00 mm | 1.8 kg | |
| KHZ 120-05S | 120 mm | 500 mm | 3.00 mm | 2.2 kg | |
| KHZ 120-06S | 120 mm | 600 mm | 3.00 mm | 2.6 kg | |
| KHZ 120-30S | 120 mm | 3000 mm | 3.00 mm | 13.19 kg |
