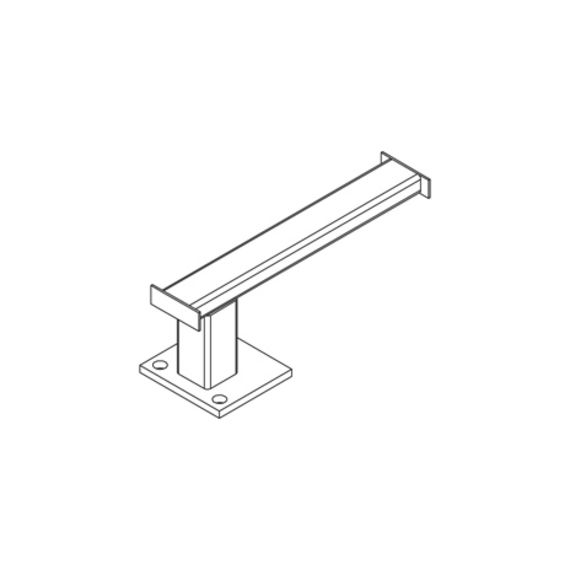

floor bracket for elevation of floor duct
From a length of 392 mm BKHR the use of BKHRU is recommended. On request we offer individual solutions.
galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

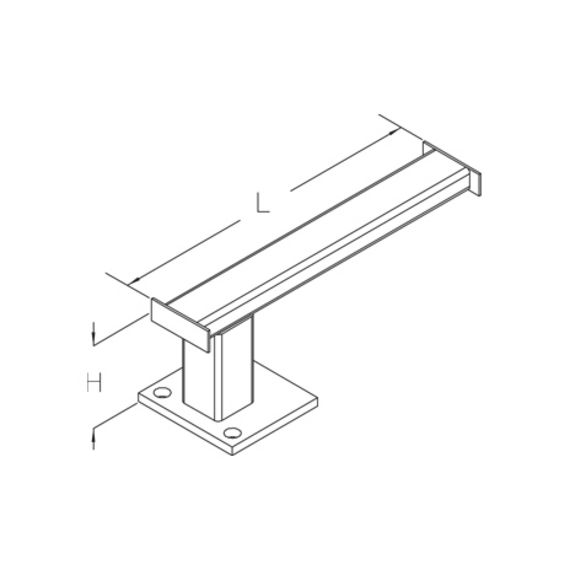

| height | length | weight | ||
|---|---|---|---|---|
| BKHR 10GV | 108 mm | 92 mm | 0.94 kg | |
| BKHR 20GV | 108 mm | 192 mm | 1.04 kg | |
| BKHR 30GV | 108 mm | 292 mm | 1.26 kg | |
| BKHR 40GV | 108 mm | 392 mm | 1.43 kg | |
| BKHR 50GV | 108 mm | 492 mm | 1.59 kg | |
| BKHR 60GV | 108 mm | 592 mm | 1.76 kg |
