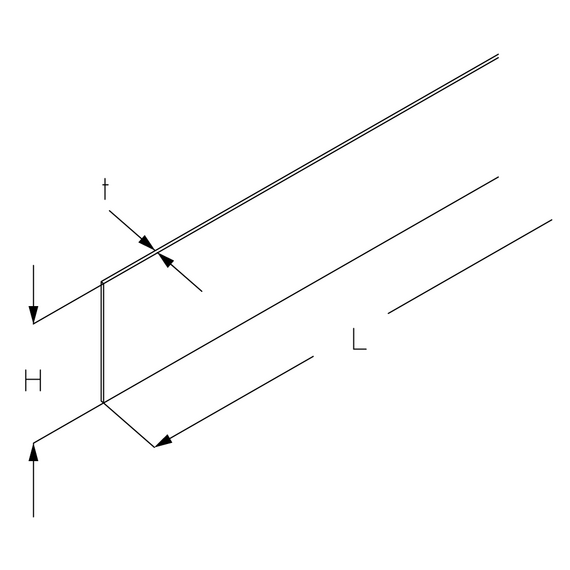

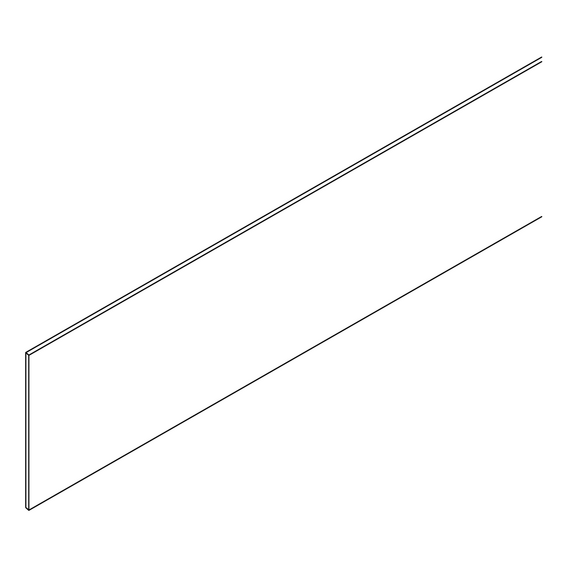

The floor duct side trim BKHCSV S is used when the floor duct is elevated by floor duct holders BKHC. The side linings protect against footsteps and dirt in case of elevated floor trunking and close the floor trunking system underneath. They have a height of 90 mm, a length of 1000, 1500 or 3000 mm and are made of sendzimir hot-dip galvanized steel.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| length | width | height | t material thickness | weight | ||
|---|---|---|---|---|---|---|
| BKHCSV S | 3000 mm | 1 mm | 90 mm | 1 mm | 2,12 kg | |
| BKHCSV 1S | 1000 mm | 1 mm | 90 mm | 1 mm | 0,71 kg | |
| BKHCSV 1.5S | 1500 mm | 1 mm | 90 mm | 1 mm | 1,06 kg |
