The producte can be used for fire protection. For technical parameters, see National Technical Test Certificates (abPs).
galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

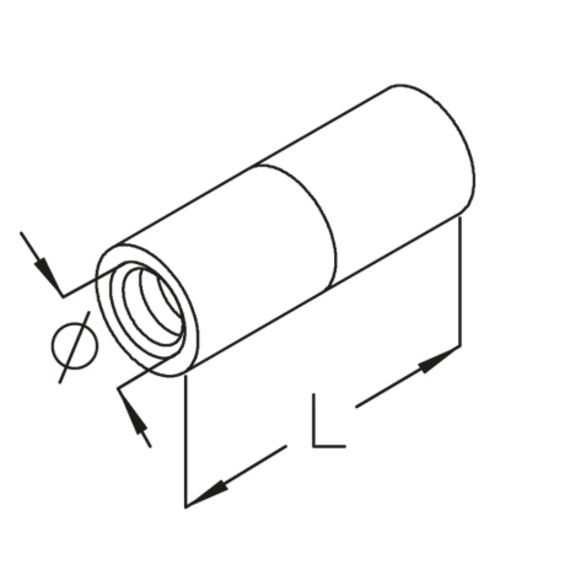

| length | diameter | weight | ||
|---|---|---|---|---|
| VM M8 | 30 mm | 8 mm | 1.1 kg/100 | |
| VM M10 | 30 mm | 10 mm | 1.4 kg/100 | |
| VM M12 | 30 mm | 12 mm | 1.7 kg/100 |
Stainless steel, according to ASTM 304 / BS 304 S 3
| length | diameter | weight | ||
|---|---|---|---|---|
| VM M8E | 30 mm | 8 mm | 1.2 kg/100 | |
| VM M10E | 30 mm | 10 mm | 1.5 kg/100 | |
| VM M12E | 30 mm | 12 mm | 2.4 kg/100 |
