Stress-areas according to DIN 267-4: GB M8 = 36.6 mm², GB M10 = 58.0 mm², GB M12 = 84.3 mm². The producte can be used for fire protection. For technical parameters, see National Technical Test Certificates (abPs).
galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

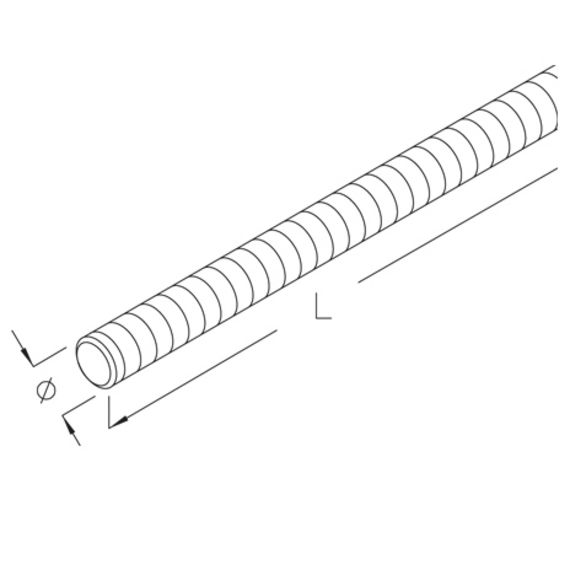

| length | diameter | weight | ||
|---|---|---|---|---|
| GB M8-03 | 300 mm | 8 mm | 8.20 kg/100 | |
| GB M8-05 | 500 mm | 8 mm | 15.30 kg/100 | |
| GB M8-10 | 1000 mm | 8 mm | 30.70 kg/100 | |
| GB M10-03 | 300 mm | 10 mm | 14.10 kg/100 | |
| GB M10-05 | 500 mm | 10 mm | 24.30 kg/100 | |
| GB M10-10 | 1000 mm | 10 mm | 49.70 kg/100 | |
| GB M12-03 | 300 mm | 12 mm | 21.70 kg/100 | |
| GB M12-05 | 500 mm | 12 mm | 36.20 kg/100 | |
| GB M12-10 | 1000 mm | 12 mm | 72.50 kg/100 |
Stainless steel, according to ASTM 304 / BS 304 S 3
| length | diameter | weight | ||
|---|---|---|---|---|
| GB M8-10E | 1000 mm | 8 mm | 30.90 kg/100 | |
| GB M10-10E | 1000 mm | 10 mm | 50.01 kg/100 | |
| GB M12-10E | 1000 mm | 12 mm | 72.96 kg/100 |
