flame retardant (excl. dowels) according to glowing wire test VDE 0471 / DIN IEC 695 Part 2-1, test temperature Tmax

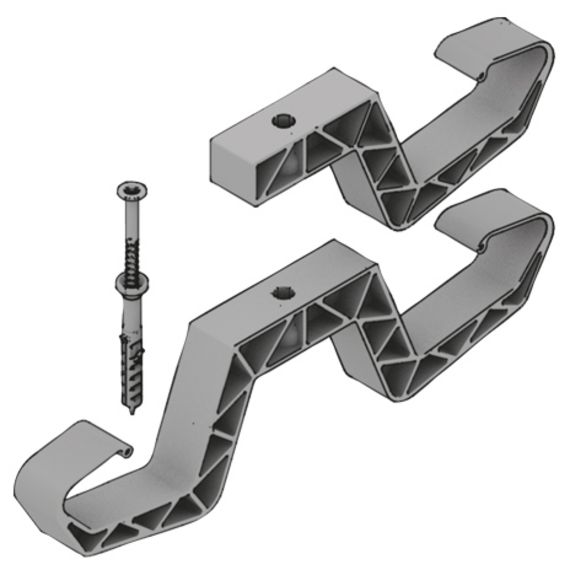

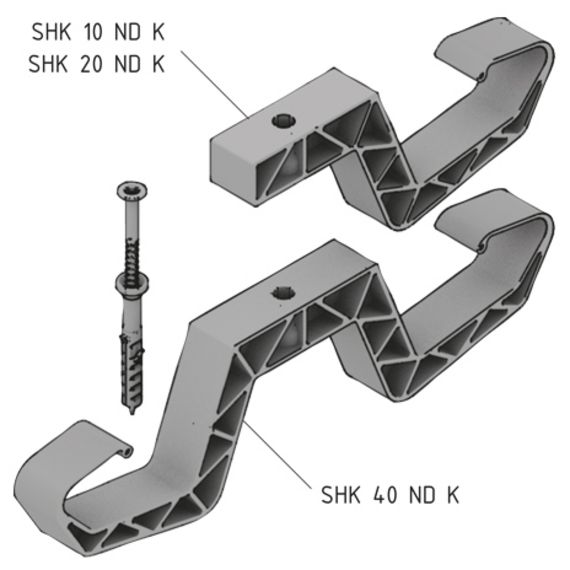

Suitable for applications with limited installation height. The information on the number of cables relating to the use of NYM cable (3 x 1.5 mm²). The SHK 10 and 20 are single-sided cable holders. The SHK 40 is a two-sided cable holder.
Polyamide
| height | number of cables Maximum number of installable cables | color | weight | PT test temperature | ||
|---|---|---|---|---|---|---|
| SHK 10 ND K | 45 mm | 10 | RAL 7035 | 0.03 kg | 750 °C | |
| SHK 20 ND K | 58 mm | 20 | RAL 7035 | 0.04 kg | 750 °C | |
| SHK 40 ND K | 58 mm | 40 | RAL 7035 | 0.05 kg | 750 °C |
Downloads
PDF | 29 MB
PDF | 660 KB
PDF | 6 MB Contact us
