Permissible as single fastening. Permissible load in cracked and non-cracked normal concrete of strength ≥ C20/25. Manufacturer’s information has to be observed strictly (ETA-06/0175).
galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

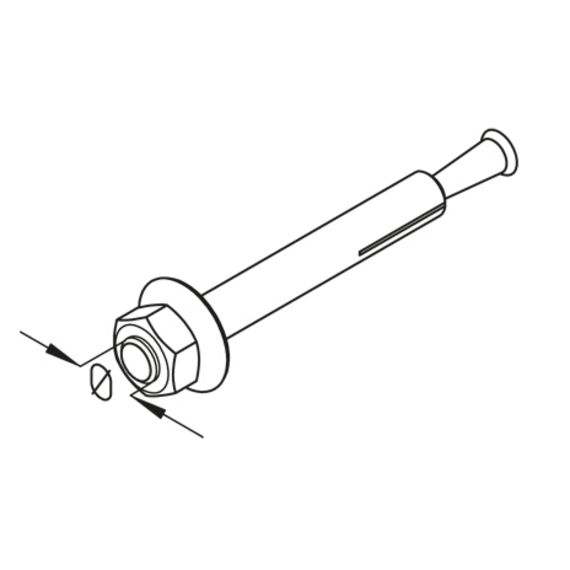

| LminMinimum drilling depth | diameter | diameter | t material thickness | Pzul permissible tractive force | PzulR30 permissible tensile load under the influence of fire (30min) | PzulR90 permissible tensile load under the influence of fire (90min) | weight | ||
|---|---|---|---|---|---|---|---|---|---|
| SD-BS 6/5 | 36 mm | 6 mm | 6 mm | 0-5 mm | 2.4 kN | 1,0 kN | 0,4 kN | 0.01 kg |
