flame-resistant according to specification of UL94 V-0 and fire hazard testing VDE 0471/DIN IEC 695 part 2-1, testing temperature Tmax

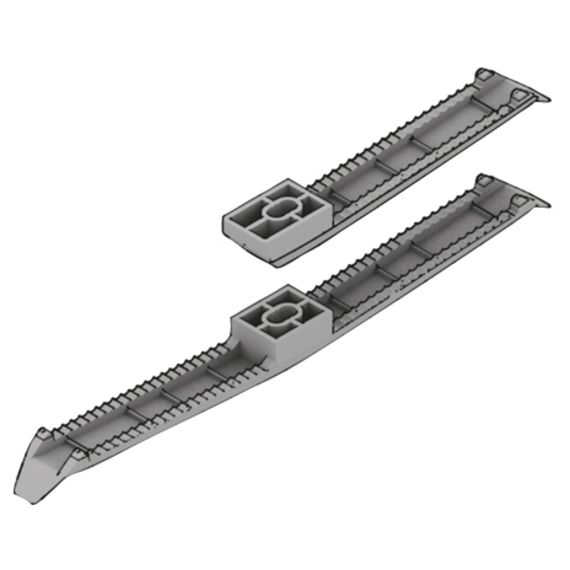

Suitable for applications with low installation height. The information on the number of cables relating to the use of NYM cable (3 x 1.5 mm²).
Polyamide
| height | number of cables Maximum number of installable cables | color | weight | PT test temperature | ||
|---|---|---|---|---|---|---|
| LK 8 K | 16 mm | 8 | RAL 7035 | 0.01 kg | 750 °C | |
| LK 10 K | 16 mm | 10 | RAL 7035 | 0.01 kg | 750 °C | |
| LK 16 K | 16 mm | 16 | RAL 7035 | 0.02 kg | 750 °C | |
| LK 8 FWK | 16 mm | 8 | RAL 7030 | 0.01 kg | 960 °C | |
| LK 10 FWK | 16 mm | 10 | RAL 7030 | 0.01 kg | 960 °C | |
| LK 16 FWK | 16 mm | 16 | RAL 7030 | 0.02 kg | 960 °C |
