load specifications are dependent on the ground. Manufacturer’s information has to be observed strictly (ETA-10/0383).
galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

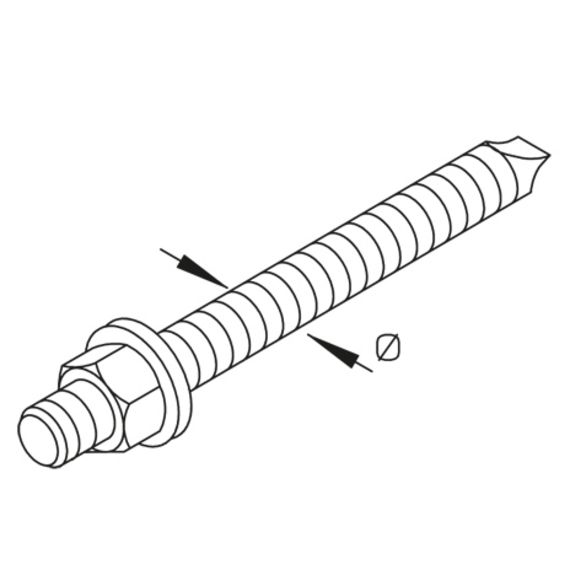

| LminMinimum drilling depth | diameter | diameter | t material thickness | weight | ||
|---|---|---|---|---|---|---|
| VAS-AS 8/15 | 80 mm | 10 mm | 8 mm | 0-15 mm | 0.04 kg | |
| VAS-AS 10/25 | 80 mm | 12 mm | 10 mm | 0-25 mm | 0.07 kg | |
| VAS-AS 12/40 | 80 mm | 14 mm | 12 mm | 0-40 mm | 0.12 kg |
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| LminMinimum drilling depth | diameter | diameter | t material thickness | weight | ||
|---|---|---|---|---|---|---|
| VAS-AS 8/15E4 | 80 mm | 10 mm | 8 mm | 0-15 mm | 0.04 kg | |
| VAS-AS 10/25E4 | 80 mm | 12 mm | 10 mm | 0-25 mm | 0.07 kg | |
| VAS-AS 12/40E4 | 80 mm | 14 mm | 12 mm | 0-40 mm | 0.12 kg |
