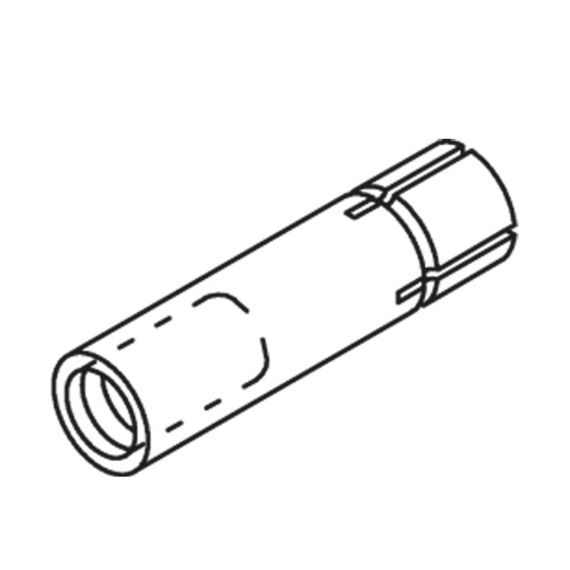

Permissible as single fastening. Permissible load in cracked and non-cracked normal concrete of strength ≥ C20/25. Manufacturer’s information has to be observed strictly (ETA-06/0271).
galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

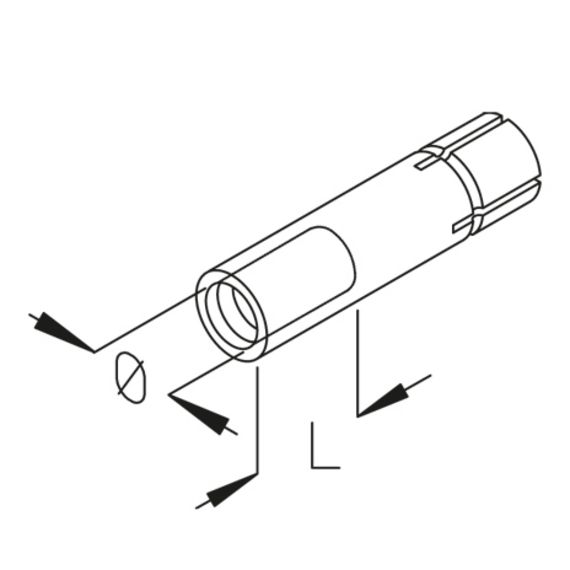

| length | LminMinimum drilling depth | diameter | diameter | Pzul permissible tractive force | PzulR30 permissible tensile load under the influence of fire (30min) | PzulR90 permissible tensile load under the influence of fire (90min) | weight | ||
|---|---|---|---|---|---|---|---|---|---|
| SAZ 6 | 8-13 mm | 43 mm | 12 mm | 6 mm | 2,4 kN | 1,0 kN | 0,4 kN | 3.2 kg/100 | |
| SAZ 8 | 11-17 mm | 43 mm | 10 mm | 8 mm | 1,6 kN | 0,9 kN | 0,7 kN | 1.4 kg/100 | |
| SAZ 10 | 13-19 mm | 43 mm | 12 mm | 10 mm | 3,0 kN | 2,3 kN | 1,1 kN | 1.9 kg/100 | |
| SAZ 12 | 15-21 mm | 43 mm | 14 mm | 12 mm | 3,6 kN | 2,8 kN | 1,4 kN | 2.6 kg/100 |
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| length | LminMinimum drilling depth | diameter | diameter | Pzul permissible tractive force | PzulR30 permissible tensile load under the influence of fire (30min) | PzulR90 permissible tensile load under the influence of fire (90min) | weight | ||
|---|---|---|---|---|---|---|---|---|---|
| SAZ 8E4 | 11-17 mm | 43 mm | 10 mm | 8 mm | 1,6 kN | 0,9 kN | 0,7 kN | 1.4 kg/100 | |
| SAZ 10E4 | 13-19 mm | 43 mm | 12 mm | 10 mm | 3,0 kN | 2,3 kN | 1,1 kN | 1.9 kg/100 | |
| SAZ 12E4 | 15-21 mm | 43 mm | 14 mm | 12 mm | 3,6 kN | 2,8 kN | 1,4 kN | 2.6 kg/100 |
