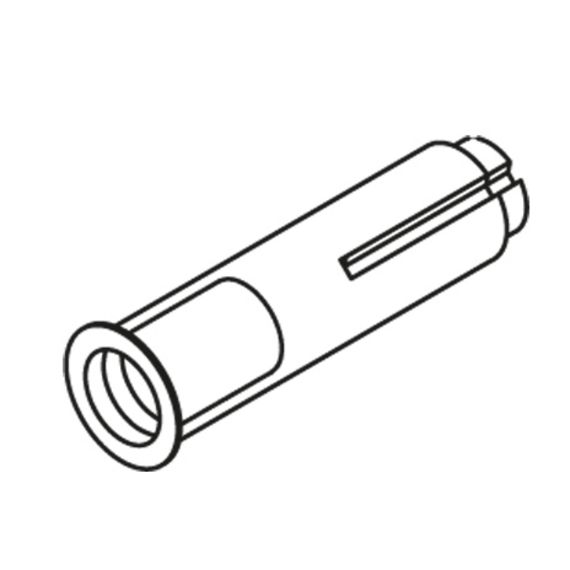

Permissible as multiple fastening. Permissible load in non-cracked normal concrete of strength ≥ C20/25. Manufacturer’s information has to be observed strictly (ETA-07/0135).
galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

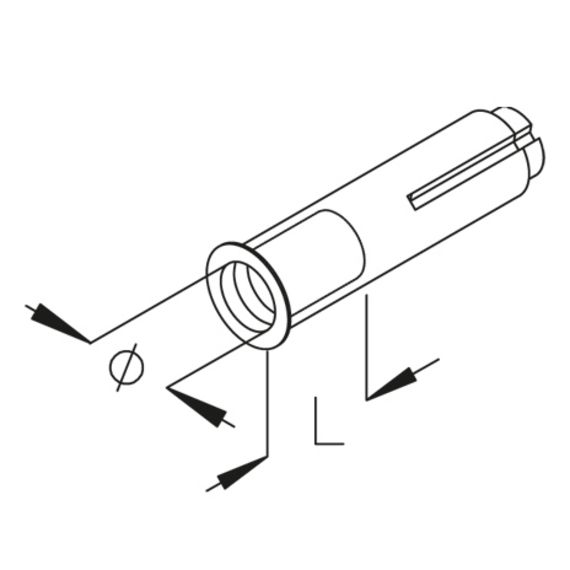

| length | LminMinimum drilling depth | diameter | diameter | Pzul permissible tractive force | weight | ||
|---|---|---|---|---|---|---|---|
| SA 6 | 6-12 mm | 27 mm | 8 mm | 6 mm | 3.95 kN | 0.4 kg/100 | |
| SA 8 | 11-17 mm | 33 mm | 10 mm | 8 mm | 3.95 kN | 0.5 kg/100 | |
| SA 10 | 13-19 mm | 44 mm | 12 mm | 10 mm | 6.1 kN | 0.8 kg/100 | |
| SA 12 | 15-21 mm | 54 mm | 15 mm | 12 mm | 8.5 kN | 1.6 kg/100 |
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| length | LminMinimum drilling depth | diameter | diameter | Pzul permissible tractive force | weight | ||
|---|---|---|---|---|---|---|---|
| SA 6E4 | 6-12 mm | 27 mm | 8 mm | 6 mm | 3.95 kN | 0.4 kg/100 | |
| SA 8E4 | 11-17 mm | 33 mm | 10 mm | 8 mm | 3.95 kN | 0.5 kg/100 | |
| SA 10E4 | 13-19 mm | 44 mm | 12 mm | 10 mm | 6.1 kN | 0.8 kg/100 | |
| SA 12E4 | 15-21 mm | 54 mm | 15 mm | 12 mm | 8.5 kN | 1.6 kg/100 |
