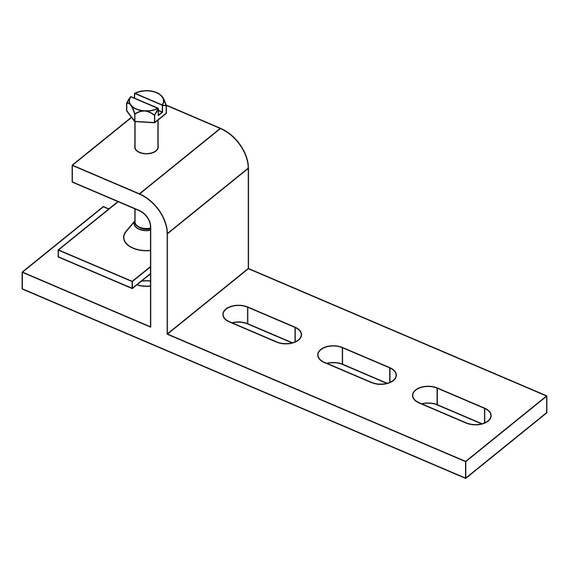

KLUGW Clamp mounting universal, welded, horizontal

Clamp fastener, horizontal, for clamping mesh cable trays to steel girders;

Tightening torque: 10Nm

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	width	t material thickness	k clamping range	P_maxMaximum load	weight
KLUGW 10F	52 mm	100 mm	149 mm	6 mm	5 - 33 mm	1,1 kN	0,451 kg
KLUGW 20F	52 mm	200 mm	249 mm	6 mm	5 - 33 mm	0,7 kN	0,620 kg
KLUGW 30F	52 mm	300 mm	349 mm	6 mm	5 - 33 mm	0,4 kN	0,789 kg

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

	height	width	width	t material thickness	k clamping range	P_maxMaximum load	weight
KLUGW 10E	52 mm	100 mm	149 mm	6 mm	5 -33 mm	1,1 kN	0,419 kg
KLUGW 20E	52 mm	200 mm	249 mm	6 mm	5 -33 mm	0,7 kN	0,577 kg
KLUGW 30E	52 mm	300 mm	349 mm	6 mm	5 -33 mm	0,4 kN	0,735 kg
