galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

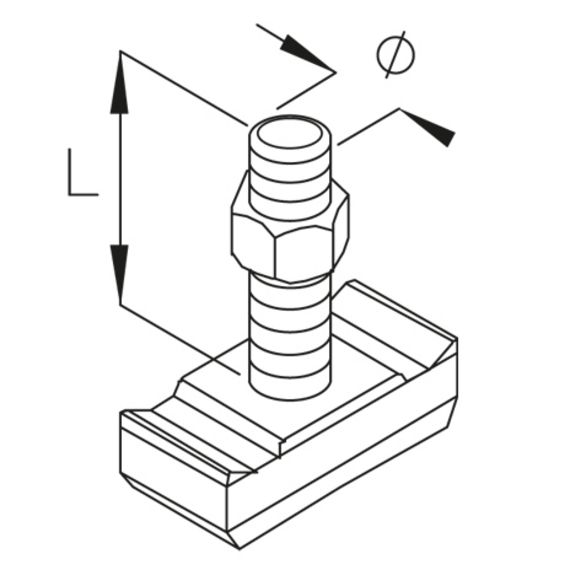

| length | diameter | weight | ||
|---|---|---|---|---|
| HS22 12X30 | 30 mm | 12 mm | 9.5 kg/100 | |
| HS22 12X40 | 40 mm | 12 mm | 10 kg/100 | |
| HS22 12X50 | 50 mm | 12 mm | 10.8 kg/100 | |
| HS22 12X60 | 60 mm | 12 mm | 11.4 kg/100 | |
| HS22 16X40 | 40 mm | 16 mm | 16.2 kg/100 | |
| HS22 16X60 | 60 mm | 16 mm | 18.6 kg/100 |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| length | diameter | weight | ||
|---|---|---|---|---|
| HS22 10X80F | 80 mm | 10 mm | 9.7 kg/100 |
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| length | diameter | weight | ||
|---|---|---|---|---|
| HS22 10X80E4 | 80 mm | 10 mm | 9.7 kg/100 | |
| HS22 12X30E4 | 30 mm | 12 mm | 9.6 kg/100 | |
| HS22 12X40E4 | 40 mm | 12 mm | 10.1 kg/100 | |
| HS22 12X50E4 | 50 mm | 12 mm | 10.9 kg/100 | |
| HS22 12X60E4 | 60 mm | 12 mm | 11.5 kg/100 | |
| HS22 16X40E4 | 40 mm | 16 mm | 16.3 kg/100 | |
| HS22 16X60E4 | 60 mm | 16 mm | 18.7 kg/100 |
