galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

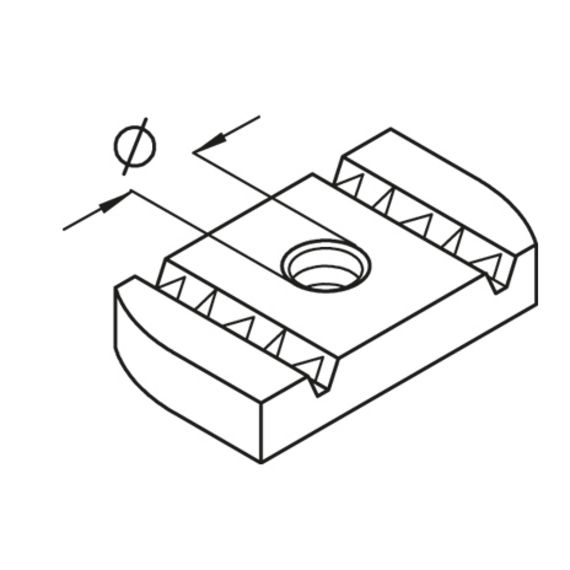

| diameter | t material thickness | weight | ||
|---|---|---|---|---|
| AM18 M6 | 6 mm | 6.00 mm | 2.6 kg/100 | |
| AM18 M8 | 8 mm | 6.00 mm | 2.4 kg/100 | |
| AM18 M10 | 10 mm | 8.00 mm | 3.3 kg/100 | |
| AM18 M12 | 12 mm | 9.50 mm | 4.2 kg/100 |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| diameter | t material thickness | weight | ||
|---|---|---|---|---|
| AM18 M6F | 6 mm | 6.00 mm | 2.8 kg/100 | |
| AM18 M8F | 8 mm | 6.00 mm | 2.6 kg/100 | |
| AM18 M10F | 10 mm | 8.00 mm | 3.5 kg/100 | |
| AM18 M12F | 12 mm | 9.50 mm | 4.5 kg/100 |
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| diameter | t material thickness | weight | ||
|---|---|---|---|---|
| AM18 M6E4 | 6 mm | 6.00 mm | 3 kg/100 | |
| AM18 M8E4 | 8 mm | 6.00 mm | 2.9 kg/100 | |
| AM18 M10E4 | 10 mm | 8.00 mm | 3.6 kg/100 | |
| AM18 M12E4 | 12 mm | 9.50 mm | 3.4 kg/100 |
