heavy cable tray, not perforated, head shape suitable for positive locking covers, certified including electrical conductivity according to DIN EN 61537/VDE 0639
Do not walk upon!
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

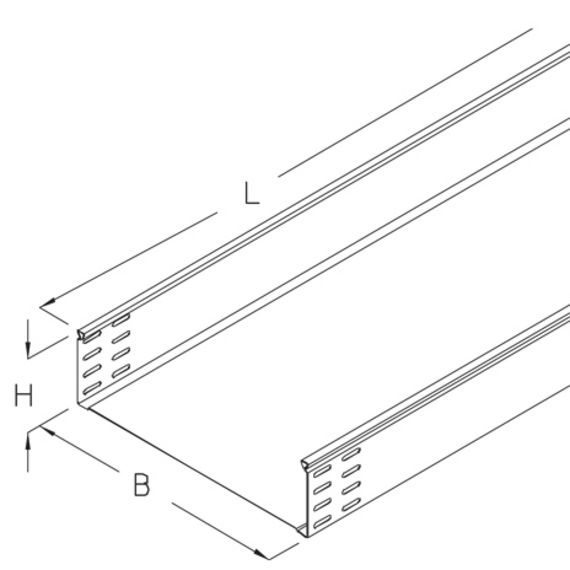

| height | width | length | t material thickness | A cross section area | QSKdistributed load control cable | weight | ||
|---|---|---|---|---|---|---|---|---|
| RS 110-10S | 110 mm | 100 mm | 3000 mm | 1.50 mm | 107 cm² | 0.16 kN/m | 12.60 kg | |
| RS 110-20S | 110 mm | 200 mm | 3000 mm | 1.50 mm | 217 cm² | 0.33 kN/m | 16.00 kg | |
| RS 110-30S | 110 mm | 300 mm | 3000 mm | 1.50 mm | 327 cm² | 0.49 kN/m | 19.60 kg | |
| RS 110-40S | 110 mm | 400 mm | 3000 mm | 1.50 mm | 437 cm² | 0.66 kN/m | 23.10 kg | |
| RS 110-50S | 110 mm | 500 mm | 3000 mm | 1.50 mm | 547 cm² | 0.82 kN/m | 26.60 kg | |
| RS 110-60S | 110 mm | 600 mm | 3000 mm | 1.50 mm | 657 cm² | 0.99 kN/m | 30.20 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| height | width | length | t material thickness | A cross section area | QSKdistributed load control cable | weight | ||
|---|---|---|---|---|---|---|---|---|
| RS 110-10F | 110 mm | 100 mm | 3000 mm | 1.50 mm | 107 cm² | 0.16 kN/m | 13.30 kg | |
| RS 110-20F | 110 mm | 200 mm | 3000 mm | 1.50 mm | 217 cm² | 0.33 kN/m | 17.00 kg | |
| RS 110-30F | 110 mm | 300 mm | 3000 mm | 1.50 mm | 327 cm² | 0.49 kN/m | 20.80 kg | |
| RS 110-40F | 110 mm | 400 mm | 3000 mm | 1.50 mm | 437 cm² | 0.66 kN/m | 24.50 kg | |
| RS 110-50F | 110 mm | 500 mm | 3000 mm | 1.50 mm | 547 cm² | 0.82 kN/m | 28.20 kg | |
| RS 110-60F | 110 mm | 600 mm | 3000 mm | 1.50 mm | 657 cm² | 0.99 kN/m | 32.00 kg |
