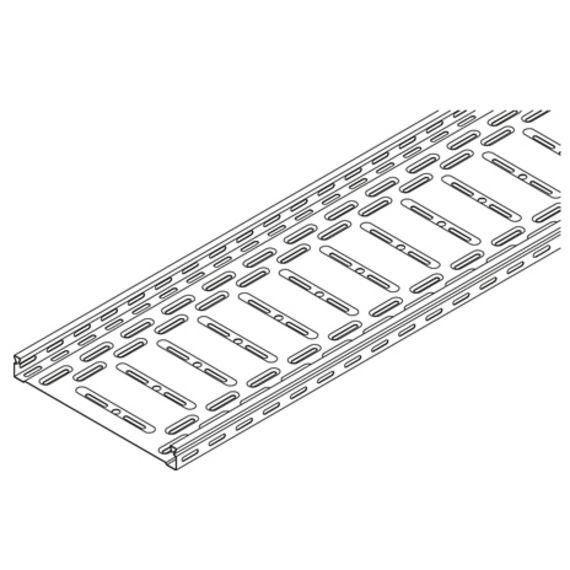

cable tray perforated, head shape suitable for positive locking covers, with longitudinal and lateral reinforcing rims reducing bottom deflection, certified including electrical conductivity according to DIN EN 61537
Do not walk upon!
UL classified
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

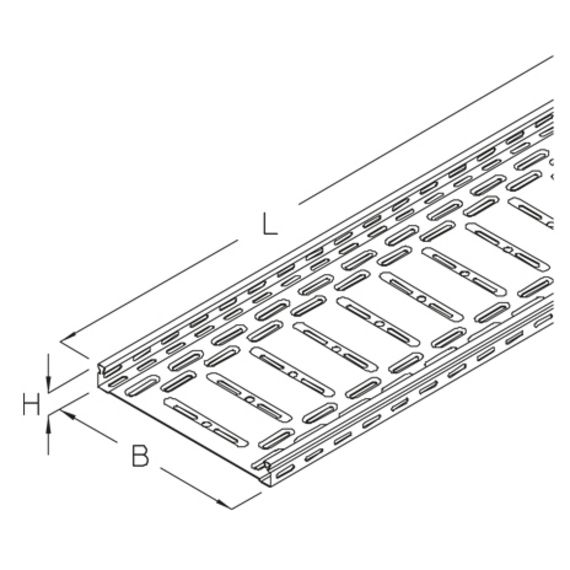

| height | width | length | t material thickness | A cross section area | QSKdistributed load control cable | weight | ||
|---|---|---|---|---|---|---|---|---|
| RG 35-05S | 35 mm | 50 mm | 3000 mm | 0.75 mm | 15 cm² | 0.02 kN/m | 2.62 kg | |
| RG 35-10S | 35 mm | 100 mm | 3000 mm | 0.75 mm | 32 cm² | 0.05 kN/m | 3.50 kg | |
| RG 35-20S | 35 mm | 200 mm | 3000 mm | 0.75 mm | 67 cm² | 0.10 kN/m | 5.20 kg | |
| RG 35-30S | 35 mm | 300 mm | 3000 mm | 0.75 mm | 102 cm² | 0.15 kN/m | 6.00 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| height | width | length | t material thickness | A cross section area | QSKdistributed load control cable | weight | ||
|---|---|---|---|---|---|---|---|---|
| RG 35-05F | 35 mm | 50 mm | 3000 mm | 0.75 mm | 15 cm² | 0.02 kN/m | 2.94 kg | |
| RG 35-10F | 35 mm | 100 mm | 3000 mm | 0.75 mm | 32 cm² | 0.05 kN/m | 3.82 kg | |
| RG 35-20F | 35 mm | 200 mm | 3000 mm | 0.75 mm | 67 cm² | 0.10 kN/m | 5.60 kg | |
| RG 35-30F | 35 mm | 300 mm | 3000 mm | 0.75 mm | 102 cm² | 0.15 kN/m | 7.60 kg |
