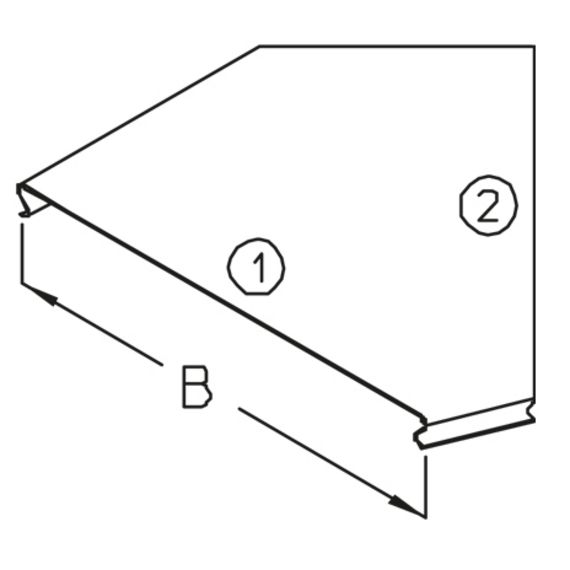

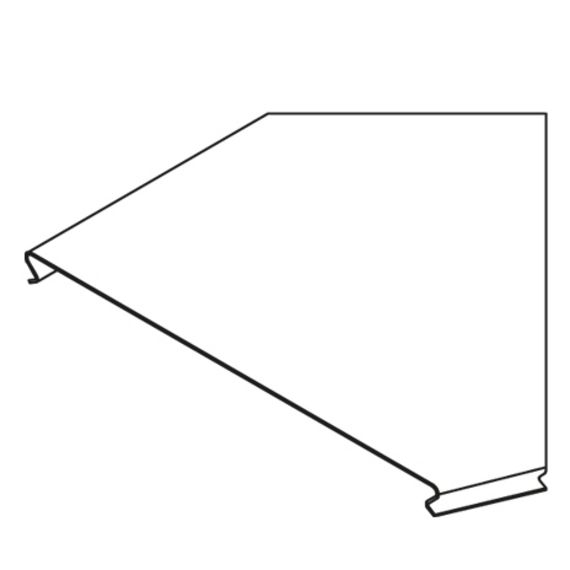

cable tray bend cover, positive locking
This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | weight | ||
|---|---|---|---|
| RBD45 10S | 100 mm | 0.1 kg | |
| RBD45 20S | 200 mm | 0.2 kg | |
| RBD45 30S | 300 mm | 0.6 kg | |
| RBD45 40S | 400 mm | 0.9 kg | |
| RBD45 50S | 500 mm | 1.6 kg | |
| RBD45 60S | 600 mm | 2.1 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | weight | ||
|---|---|---|---|
| RBD45 10F | 100 mm | 0.1 kg | |
| RBD45 20F | 200 mm | 0.3 kg | |
| RBD45 30F | 300 mm | 0.6 kg | |
| RBD45 40F | 400 mm | 1 kg | |
| RBD45 50F | 500 mm | 1.8 kg | |
| RBD45 60F | 600 mm | 2.4 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | weight | ||
|---|---|---|---|
| RBD45 10E | 100 mm | 0.13 kg | |
| RBD45 20E | 200 mm | 0.31 kg | |
| RBD45 30E | 300 mm | 0.55 kg | |
| RBD45 40E | 400 mm | 0.88 kg | |
| RBD45 50E | 500 mm | 1.57 kg | |
| RBD45 60E | 600 mm | 2.13 kg |
