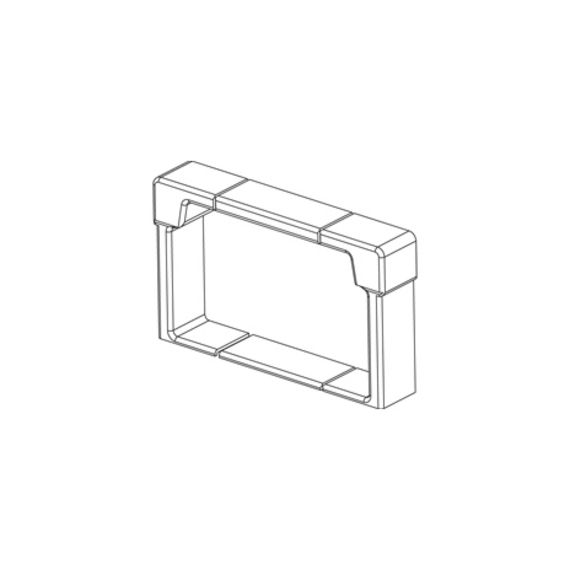

The protective cap is provided with predetermined breaking points for easier separation. For mounting on a filled RI the base is interrupted.
To mount an SRI 60-05, the protective cap must be opened and the middle parts of the protective cap removed. To mount an SRI 60-15, the protective cap must be opened and the SRI-EO 50 must be mounted on the lid and the SRI-EU 50 on the base in between. To mount an SRI 60-20, the protective cap must be opened and two SRI-EO 50 must be mounted on the lid and two SRI-EU 50 on the base in between. To mount an SRI 60-30, the protective cap must be opened and four SRI-EO 50 must be mounted on the lid and four SRI-EU 50 on the base in between.
| height | width | weight | ||
|---|---|---|---|---|
| SRI 60-05 | 60 mm | 50 mm | 0.01 kg | |
| SRI 60-10 | 60 mm | 100 mm | 0.01 kg | |
| SRI 60-15 | 60 mm | 150 mm | 0.02 kg | |
| SRI 60-20 | 60 mm | 200 mm | 0.02 kg | |
| SRI 60-30 | 60 mm | 300 mm | 0.03 kg |
