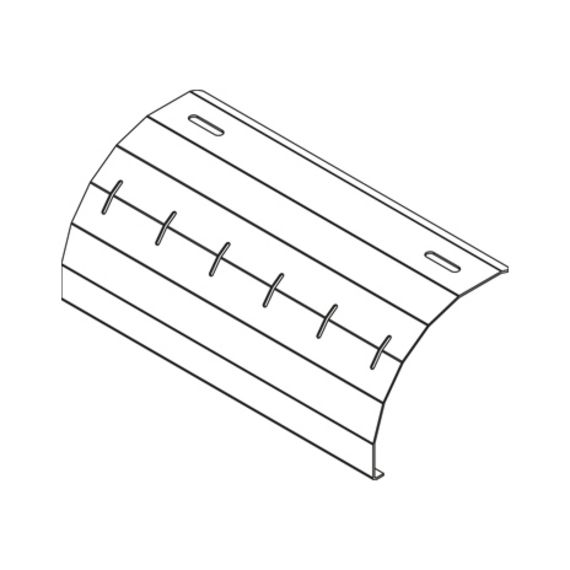

RKAB drop-out plate

Drop-out plate for cable trays.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

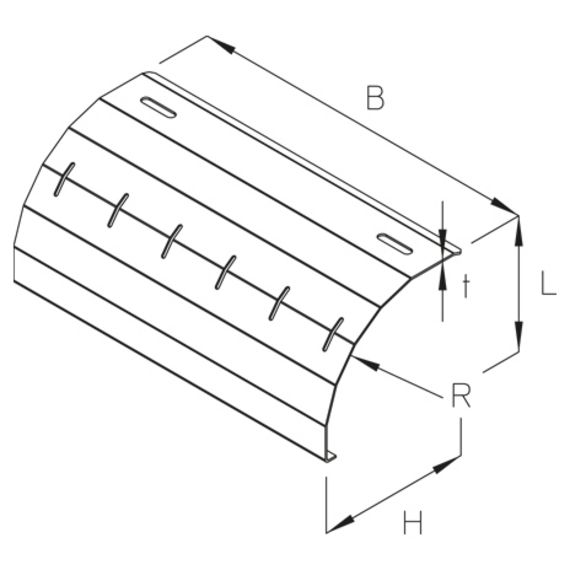

	height	width	length	radius	t material thickness	weight
RKAB 05S	129 mm	40 mm	110 mm	100 mm	1.5 mm	0.10 kg
RKAB 10S	129 mm	90 mm	110 mm	100 mm	1.5 mm	0.22 kg
RKAB 15S	129 mm	140 mm	110 mm	100 mm	1.5 mm	0.35 kg
RKAB 20S	129 mm	190 mm	110 mm	100 mm	1.5 mm	0.46 kg
RKAB 30S	129 mm	290 mm	110 mm	100 mm	1.5 mm	0.69 kg
RKAB 40S	129 mm	390 mm	110 mm	100 mm	1.5 mm	0.93 kg
RKAB 50S	129 mm	490 mm	110 mm	100 mm	1.5 mm	1.16 kg
RKAB 60S	129 mm	590 mm	110 mm	100 mm	1.5 mm	1.40 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	radius	t material thickness	weight
RKAB 05F	129 mm	40 mm	110 mm	100 mm	1.5 mm	0.11 kg
RKAB 10F	129 mm	90 mm	110 mm	100 mm	1.5 mm	0.24 kg
RKAB 15F	129 mm	140 mm	110 mm	100 mm	1.5 mm	0.37 kg
RKAB 20F	129 mm	190 mm	110 mm	100 mm	1.5 mm	0.49 kg
RKAB 30F	129 mm	290 mm	110 mm	100 mm	1.5 mm	0.74 kg
RKAB 40F	129 mm	390 mm	110 mm	100 mm	1.5 mm	0.99 kg
RKAB 50F	129 mm	490 mm	110 mm	100 mm	1.5 mm	1.25 kg
RKAB 60F	129 mm	590 mm	110 mm	100 mm	1.5 mm	1.50 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	radius	t material thickness	weight
RKAB 05E	129 mm	40 mm	110 mm	100 mm	1.5 mm	0.10 kg
RKAB 10E	129 mm	90 mm	110 mm	100 mm	1.5 mm	0.23 kg
RKAB 15E	129 mm	140 mm	110 mm	100 mm	1.5 mm	0.35 kg
RKAB 20E	129 mm	190 mm	110 mm	100 mm	1.5 mm	0.47 kg
RKAB 30E	129 mm	290 mm	110 mm	100 mm	1.5 mm	0.71 kg
RKAB 40E	129 mm	390 mm	110 mm	100 mm	1.5 mm	0.94 kg
RKAB 50E	129 mm	490 mm	110 mm	100 mm	1.5 mm	1.19 kg
RKAB 60E	129 mm	590 mm	110 mm	100 mm	1.5 mm	1.43 kg
