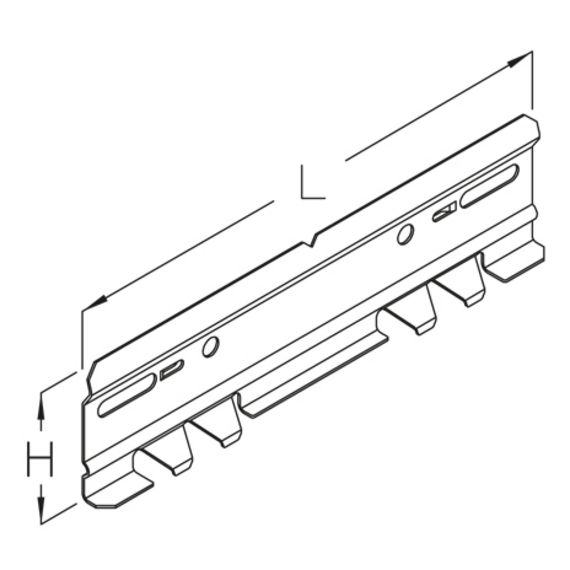

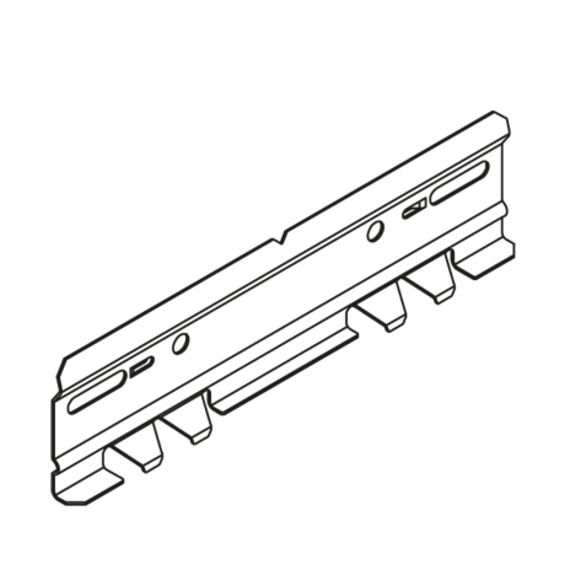

Flexible snap connector for variable cable tray lengths.
The side connector is only suitable for the cable trays type RG 60 and R 60.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| height | length | weight | ||
|---|---|---|---|---|
| RGVS 60S | 60 mm | 230 mm | 0.12 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| height | length | weight | ||
|---|---|---|---|---|
| RGVS 60F | 60 mm | 230 mm | 0,13 kg |
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| height | length | weight | ||
|---|---|---|---|---|
| RGVS 60E | 60 mm | 230 mm | 0,12 kg |
