This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

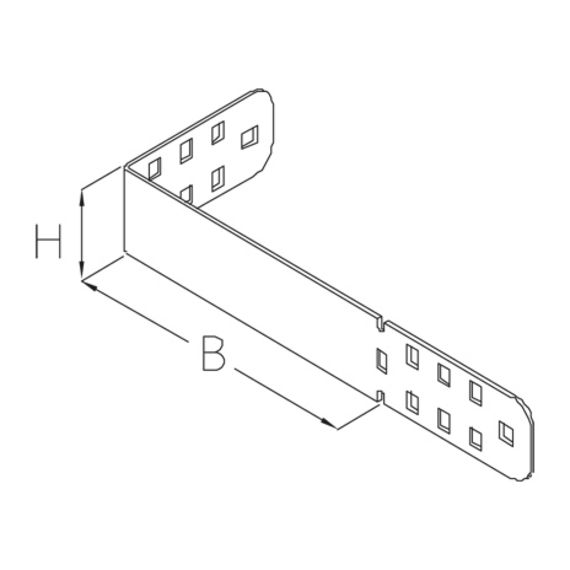

| height | width | weight | ||
|---|---|---|---|---|
| RAB 60-10S | 45 mm | 100 mm | 0.23 kg | |
| RAB 60-20S | 45 mm | 200 mm | 0.27 kg | |
| RAB 60-30S | 45 mm | 300 mm | 0.34 kg | |
| RAB 60-40S | 45 mm | 400 mm | 0.41 kg | |
| RAB 60-50S | 45 mm | 500 mm | 0.48 kg | |
| RAB 60-60S | 45 mm | 600 mm | 0.55 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| height | width | weight | ||
|---|---|---|---|---|
| RAB 60-10F | 45 mm | 100 mm | 0.25 kg | |
| RAB 60-20F | 45 mm | 200 mm | 0.29 kg | |
| RAB 60-30F | 45 mm | 300 mm | 0.36 kg | |
| RAB 60-40F | 45 mm | 400 mm | 0.44 kg | |
| RAB 60-50F | 45 mm | 500 mm | 0.51 kg | |
| RAB 60-60F | 45 mm | 600 mm | 0.56 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| height | width | weight | ||
|---|---|---|---|---|
| RAB 60-10E | 45 mm | 100 mm | 0.17 kg | |
| RAB 60-20E | 45 mm | 200 mm | 0.20 kg | |
| RAB 60-30E | 45 mm | 300 mm | 0.25 kg | |
| RAB 60-40E | 45 mm | 400 mm | 0.31 kg | |
| RAB 60-50E | 45 mm | 500 mm | 0.36 kg | |
| RAB 60-60E | 45 mm | 600 mm | 0.41 kg |
