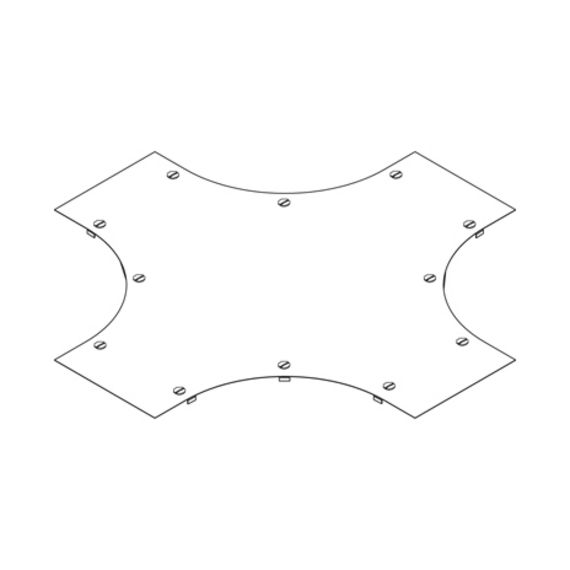

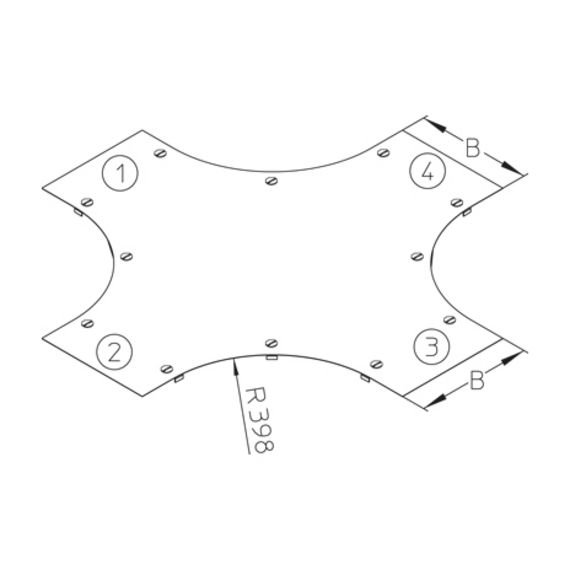

cover for cable ladder crossing
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LKDR 20S | 204 mm | 398 mm | 0.75 mm | 4.2 kg | |
| LKDR 30S | 304 mm | 398 mm | 1.00 mm | 7.58 kg | |
| LKDR 40S | 404 mm | 398 mm | 1.00 mm | 9.81 kg | |
| LKDR 50S | 504 mm | 398 mm | 1.25 mm | 15.13 kg | |
| LKDR 60S | 604 mm | 398 mm | 1.25 mm | 18.30 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LKDR 20F | 204 mm | 398 mm | 0.75 mm | 4.47 kg | |
| LKDR 30F | 304 mm | 398 mm | 1.00 mm | 8.09 kg | |
| LKDR 40F | 404 mm | 398 mm | 1.00 mm | 10.48 kg | |
| LKDR 50F | 504 mm | 398 mm | 1.25 mm | 15.23 kg | |
| LKDR 60F | 604 mm | 398 mm | 1.25 mm | 19.56 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LKDR 20E | 204 mm | 398 mm | 0.80 mm | 4.52 kg | |
| LKDR 30E | 304 mm | 398 mm | 1.00 mm | 7.63 kg | |
| LKDR 40E | 404 mm | 398 mm | 1.00 mm | 9.87 kg | |
| LKDR 50E | 504 mm | 398 mm | 1.25 mm | 15.22 kg | |
| LKDR 60E | 604 mm | 398 mm | 1.25 mm | 18.41 kg |
