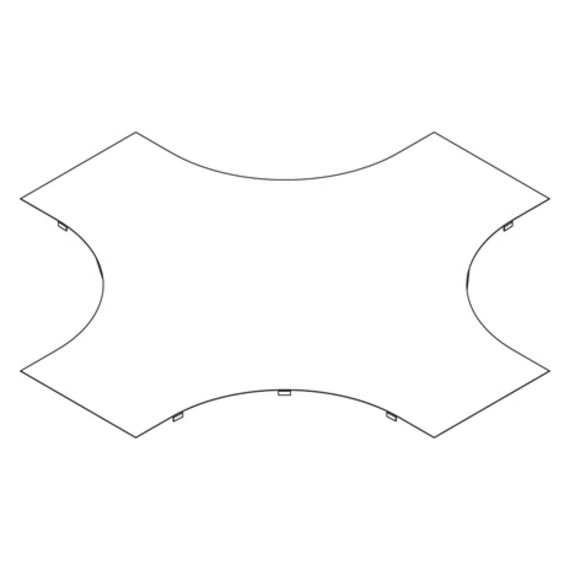

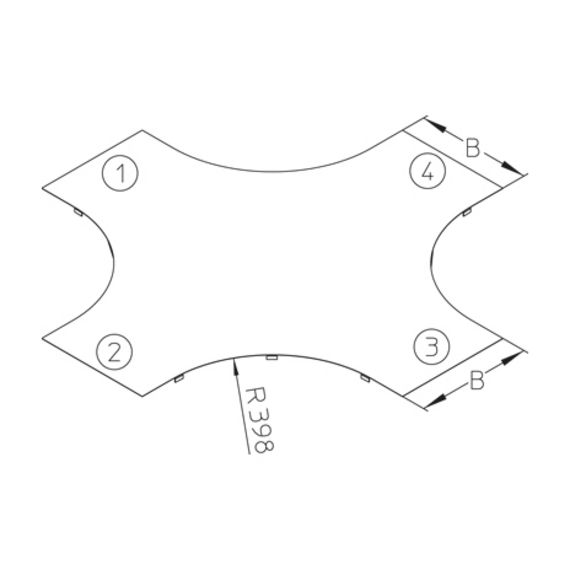

cover for cable ladder crossing
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LKD 20S | 204 mm | 398 mm | 0.75 mm | 3.74 kg | |
| LKD 30S | 304 mm | 398 mm | 1.00 mm | 6.97 kg | |
| LKD 40S | 404 mm | 398 mm | 1.00 mm | 9.16 kg | |
| LKD 50S | 504 mm | 398 mm | 1.25 mm | 14.35 kg | |
| LKD 60S | 604 mm | 398 mm | 1.25 mm | 18.07 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LKD 20F | 204 mm | 398 mm | 0.75 mm | 4.00 kg | |
| LKD 30F | 304 mm | 398 mm | 1.00 mm | 7.46 kg | |
| LKD 40F | 404 mm | 398 mm | 1.00 mm | 9.8 kg | |
| LKD 50F | 504 mm | 398 mm | 1.25 mm | 15.35 kg | |
| LKD 60F | 604 mm | 398 mm | 1.25 mm | 19.33 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LKD 20E | 204 mm | 398 mm | 0.80 mm | 4.00 kg | |
| LKD 30E | 304 mm | 398 mm | 1.00 mm | 7.01 kg | |
| LKD 40E | 404 mm | 398 mm | 1.00 mm | 9.22 kg | |
| LKD 50E | 504 mm | 398 mm | 1.25 mm | 14.45 kg | |
| LKD 60E | 604 mm | 398 mm | 1.25 mm | 18.22 kg |
