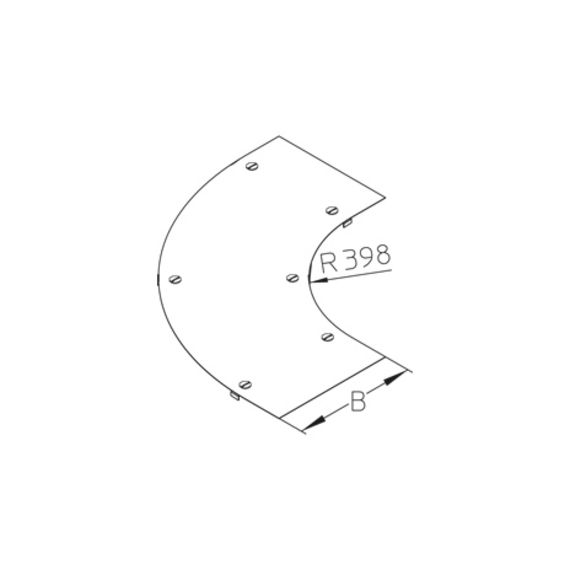

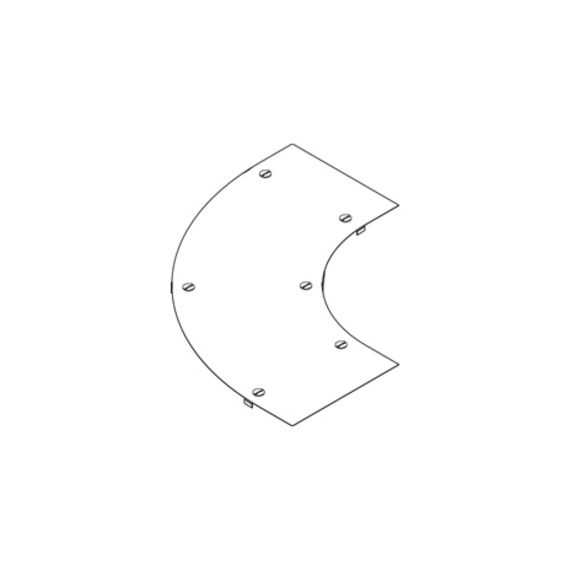

cover for cable ladder inside bends
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LIBDR 20S | 204 mm | 398 mm | 0.75 mm | 1.42 kg | |
| LIBDR 30S | 304 mm | 398 mm | 1.00 mm | 2.84 kg | |
| LIBDR 40S | 404 mm | 398 mm | 1.00 mm | 3.96 kg | |
| LIBDR 50S | 504 mm | 398 mm | 1.25 mm | 6.46 kg | |
| LIBDR 60S | 604 mm | 398 mm | 1.25 mm | 8.18 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LIBDR 20F | 204 mm | 398 mm | 0.75 mm | 1.53 kg | |
| LIBDR 30F | 304 mm | 398 mm | 1.00 mm | 3.04 kg | |
| LIBDR 40F | 404 mm | 398 mm | 1.00 mm | 4.24 kg | |
| LIBDR 50F | 504 mm | 398 mm | 1.25 mm | 6.92 kg | |
| LIBDR 60F | 604 mm | 398 mm | 1.25 mm | 8.75 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LIBDR 20E | 204 mm | 398 mm | 0.80 mm | 1.44 kg | |
| LIBDR 30E | 304 mm | 398 mm | 1.00 mm | 2.87 kg | |
| LIBDR 40E | 404 mm | 398 mm | 1.00 mm | 4.00 kg | |
| LIBDR 50E | 504 mm | 398 mm | 1.25 mm | 6.52 kg | |
| LIBDR 60E | 604 mm | 398 mm | 1.25 mm | 8.24 kg |
