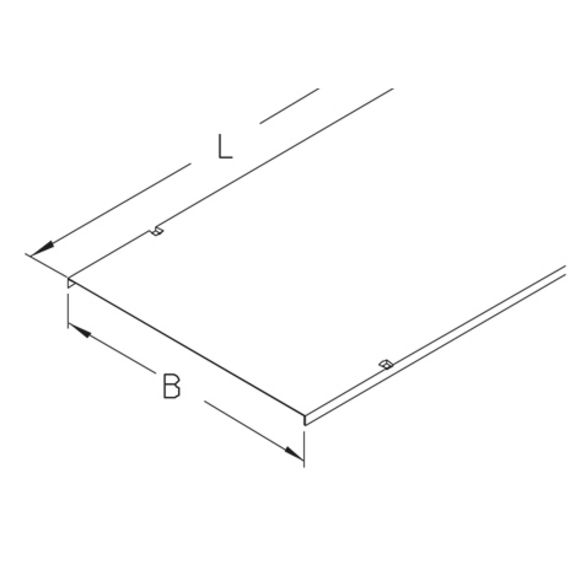

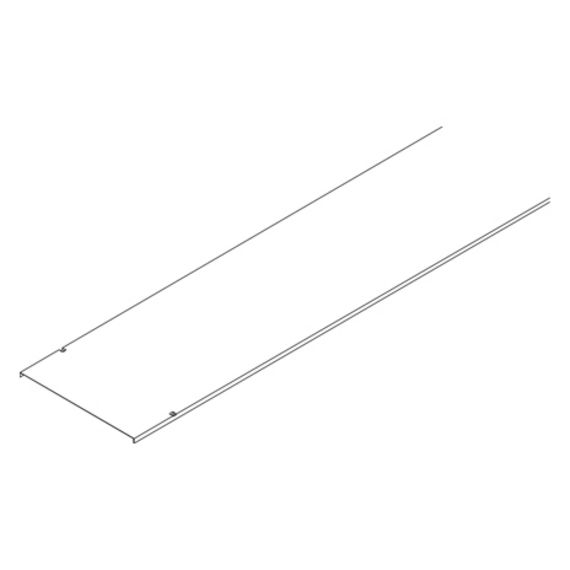

cable ladder cover
This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | length | weight | ||
|---|---|---|---|---|
| LD 20S | 206 mm | 3000 mm | 4.1 kg | |
| LD 30S | 306 mm | 3000 mm | 7.8 kg | |
| LD 40S | 406 mm | 3000 mm | 10.1 kg | |
| LD 50S | 506 mm | 3000 mm | 15.6 kg | |
| LD 60S | 606 mm | 3000 mm | 18.5 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | length | weight | ||
|---|---|---|---|---|
| LD 20F | 206 mm | 3000 mm | 4.7 kg | |
| LD 30F | 306 mm | 3000 mm | 8.6 kg | |
| LD 40F | 406 mm | 3000 mm | 11.2 kg | |
| LD 50F | 506 mm | 3000 mm | 17 kg | |
| LD 60F | 606 mm | 3000 mm | 20.3 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | length | weight | ||
|---|---|---|---|---|
| LD 20E | 206 mm | 3000 mm | 4.4 kg | |
| LD 30E | 306 mm | 3000 mm | 7.8 kg | |
| LD 40E | 406 mm | 3000 mm | 10.2 kg | |
| LD 50E | 506 mm | 3000 mm | 15.1 kg | |
| LD 60E | 606 mm | 3000 mm | 17.6 kg |
