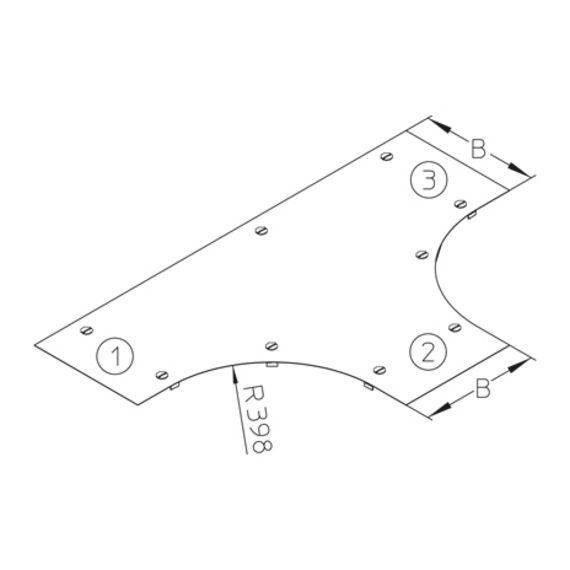

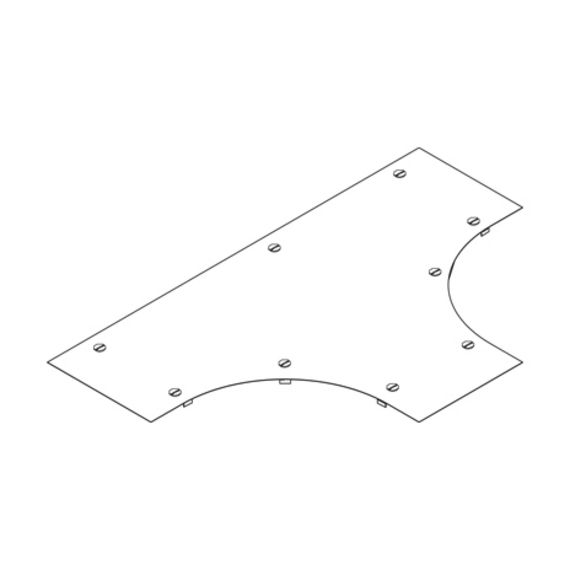

Cover for branch.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LADR 20S | 204 mm | 398 mm | 0.75 mm | 2.73 kg | |
| LADR 30S | 304 mm | 398 mm | 1.00 mm | 5.20 kg | |
| LADR 40S | 404 mm | 398 mm | 1.00 mm | 6.99 kg | |
| LADR 50S | 504 mm | 398 mm | 1.25 mm | 11.11 kg | |
| LADR 60S | 604 mm | 398 mm | 1.25 mm | 13.74 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LADR 20F | 204 mm | 398 mm | 0.75 mm | 2.91 kg | |
| LADR 30F | 304 mm | 398 mm | 1.00 mm | 5.56 kg | |
| LADR 40F | 404 mm | 398 mm | 1.00 mm | 7.47 kg | |
| LADR 50F | 504 mm | 398 mm | 1.25 mm | 11.89 kg | |
| LADR 60F | 604 mm | 398 mm | 1.25 mm | 14.70 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LADR 20E | 204 mm | 398 mm | 0.80 mm | 2.91 kg | |
| LADR 30E | 304 mm | 398 mm | 1.00 mm | 5.23 kg | |
| LADR 40E | 404 mm | 398 mm | 1.00 mm | 7.03 kg | |
| LADR 50E | 504 mm | 398 mm | 1.25 mm | 11.18 kg | |
| LADR 60E | 604 mm | 398 mm | 1.25 mm | 13.83 kg |
