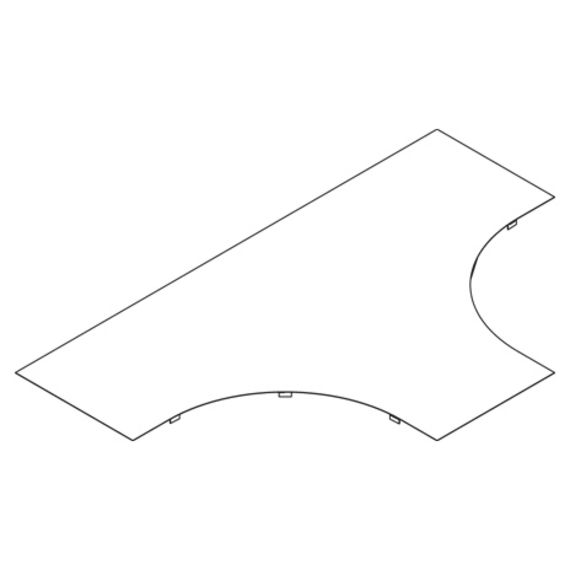

Cover for branch.
This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

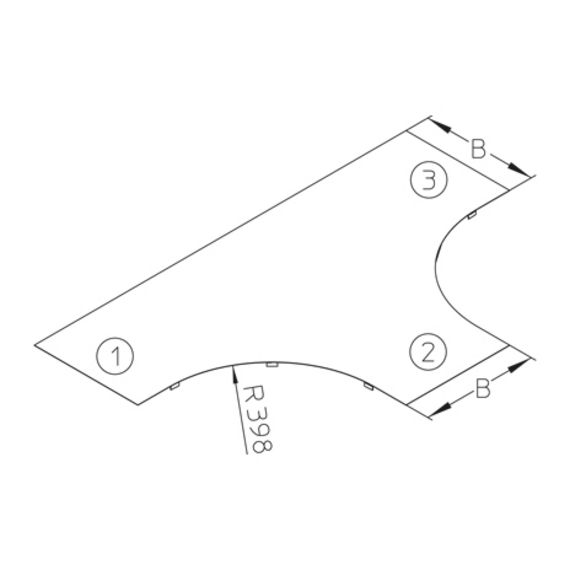

| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LAD 20S | 204 mm | 398 mm | 0.75 mm | 2.67 kg | |
| LAD 30S | 304 mm | 398 mm | 1.00 mm | 5.14 kg | |
| LAD 40S | 404 mm | 398 mm | 1.00 mm | 6.93 kg | |
| LAD 50S | 504 mm | 398 mm | 1.25 mm | 11.06 kg | |
| LAD 60S | 604 mm | 398 mm | 1.25 mm | 13.68 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LAD 20F | 204 mm | 398 mm | 0.75 mm | 2.86 kg | |
| LAD 30F | 304 mm | 398 mm | 1.00 mm | 5.5 kg | |
| LAD 40F | 404 mm | 398 mm | 1.00 mm | 7.42 kg | |
| LAD 50F | 504 mm | 398 mm | 1.25 mm | 11.83 kg | |
| LAD 60F | 604 mm | 398 mm | 1.25 mm | 14.64 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | radius | t material thickness | weight | ||
|---|---|---|---|---|---|
| LAD 20E | 204 mm | 398 mm | 0.80 mm | 2.85 kg | |
| LAD 30E | 304 mm | 398 mm | 1.00 mm | 5.17 kg | |
| LAD 40E | 404 mm | 398 mm | 1.00 mm | 6.97 kg | |
| LAD 50E | 504 mm | 398 mm | 1.25 mm | 11.13 kg | |
| LAD 60E | 604 mm | 398 mm | 1.25 mm | 13.77 kg |
