U-HW cable clamp for fastening to flat sections

Downloads

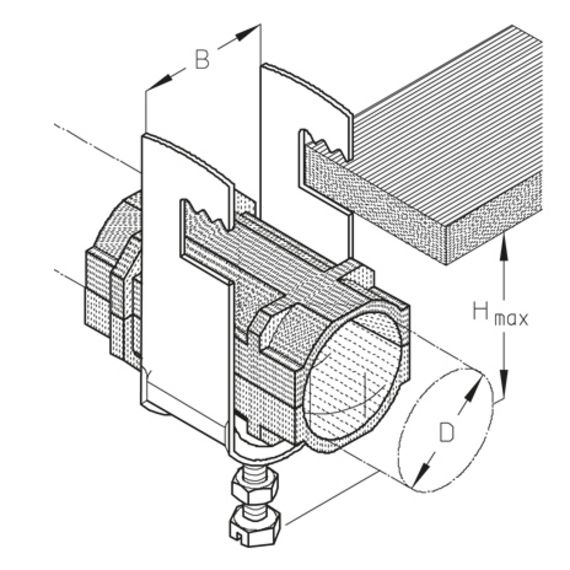

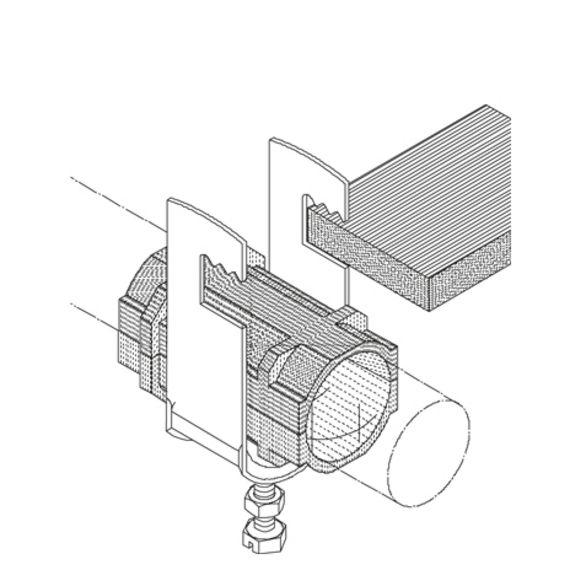

HF cable clamp with all-over vat made of galvanised steel and plastic half-vats made of polystyrene. For fastening to flat profiles with a material thickness of up to 12 mm.

Zinc coated

	width	diameter	H_maxMaximum height	number of cables Maximum number of installable cables	weight
20 U-HW	20 mm	1/2 Zoll	53 mm	1	4.72 kg/100
32 U-HW	32 mm	7/8 Zoll	68 mm	1	9.3 kg/100
44 U-HW	44 mm	1 1/4 Zoll	83 mm	1	14.2 kg/100
56 U-HW	56 mm	1 5/8 Zoll	106 mm	1	17.52 kg/100
20/2 U-HW	20 mm	1/2 Zoll	73 mm	2	6.84 kg/100
32/2 U-HW	32 mm	7/8 Zoll	102 mm	2	14.1 kg/100
44/2 U-HW	44 mm	1 1/4 Zoll	129 mm	2	21.8 kg/100
56/2 U-HW	56 mm	1 5/8 Zoll	164 mm	2	27.64 kg/100
20/3 U-HW	20 mm	1/2 Zoll	93 mm	3	8.96 kg/100
32/3 U-HW	32 mm	7/8 Zoll	136 mm	3	21.8 kg/100

Stainless steel, according to ASTM 304 / BS 304 S 3

	width	diameter	H_maxMaximum height	number of cables Maximum number of installable cables	weight
20 U-HW-E	20 mm	1/2 Zoll	53 mm	1	4.62 kg/100
32 U-HW-E	32 mm	7/8 Zoll	68 mm	1	8.5 kg/100
44 U-HW-E	44 mm	1 1/4 Zoll	83 mm	1	13 kg/100
56 U-HW-E	56 mm	1 5/8 Zoll	106 mm	1	16.6 kg/100
20/2 U-HW-E	20 mm	1/2 Zoll	73 mm	2	6.64 kg/100
32/2 U-HW-E	32 mm	7/8 Zoll	102 mm	2	12.5 kg/100
44/2 U-HW-E	44 mm	1 1/4 Zoll	129 mm	2	19.9 kg/100
56/2 U-HW-E	56 mm	1 5/8 Zoll	164 mm	2	26.6 kg/100
20/3 U-HW-E	20 mm	1/2 Zoll	93 mm	3	8.6 kg/100
32/3 U-HW-E	32 mm	7/8 Zoll	136 mm	3	16.8 kg/100
44/3 U-HW-E	44 mm	1 1/4 Zoll	176 mm	3	26.8 kg/100
