S-HW cable clamp for fastening to angle profiles

Downloads

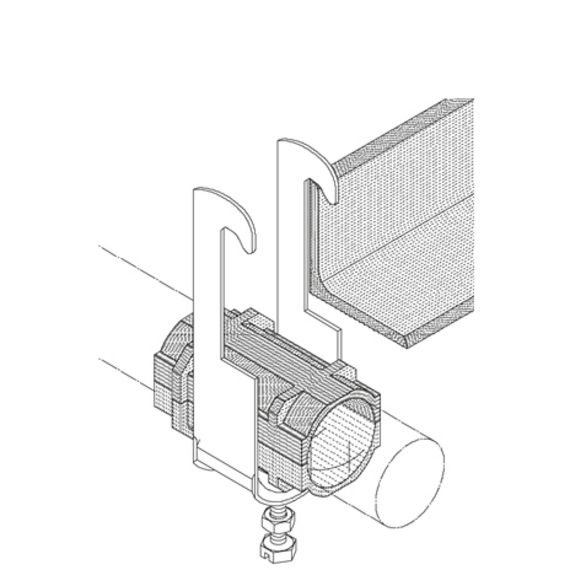

HF cable clamp with all-over vat made of galvanised steel and plastic half-vats made of polystyrene. For fastening to angle profiles with a side length of up to max. 43 mm.

Zinc coated

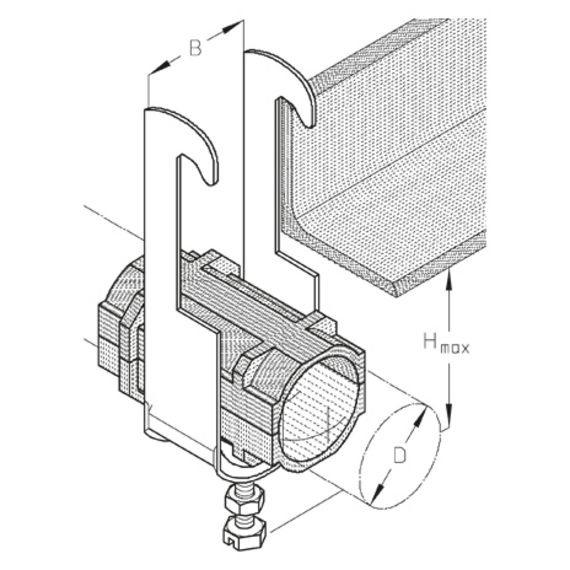

	width	diameter	diameter	H_maxMaximum height	number of cables Maximum number of installable cables	weight
20 S-HW	20 mm	20 mm	1/2 Zoll	53 mm	1	5.52 kg/100
32 S-HW	32 mm	32 mm	7/8 Zoll	68 mm	1	8.6 kg/100
44 S-HW	44 mm	44 mm	1 1/4 Zoll	83 mm	1	14.9 kg/100
56 S-HW	56 mm	56 mm	1 5/8 Zoll	106 mm	1	18.22 kg/100
20/2 S-HW	20 mm	20 mm	1/2 Zoll	73 mm	2	6.44 kg/100
32/2 S-HW	32 mm	32 mm	7/8 Zoll	102 mm	2	13.3 kg/100
20/3 S-HW	20 mm	20 mm	1/2 Zoll	93 mm	3	8.66 kg/100

Stainless steel, according to ASTM 304 / BS 304 S 3

	width	diameter	diameter	H_maxMaximum height	number of cables Maximum number of installable cables	weight
20 S-HW-E	20 mm	20 mm	1/2 Zoll	53 mm	1	5.12 kg/100
32 S-HW-E	32 mm	32 mm	7/8 Zoll	68 mm	1	8.8 kg/100
44 S-HW-E	44 mm	44 mm	1 1/4 Zoll	83 mm	1	13.3 kg/100
56 S-HW-E	56 mm	56 mm	1 5/8 Zoll	106 mm	1	17.5 kg/100
20/2 S-HW-E	20 mm	20 mm	1/2 Zoll	73 mm	2	7.44 kg/100
32/2 S-HW-E	32 mm	32 mm	7/8 Zoll	102 mm	2	13.5 kg/100
44/2 S-HW-E	44 mm	44 mm	1 1/4 Zoll	129 mm	2	20.1 kg/100
56/2 S-HW-E	56 mm	56 mm	1 5/8 Zoll	164 mm	2	26.8 kg/100
20/3 S-HW-E	20 mm	20 mm	1/2 Zoll	93 mm	3	9.3 kg/100
32/3 S-HW-E	32 mm	32 mm	7/8 Zoll	136 mm	3	17.7 kg/100
44/3 S-HW-E	44 mm	44 mm	1 1/4 Zoll	176 mm	3	26.9 kg/100
