RU-HW cable clamp for fastening to round and flat profiles

Downloads

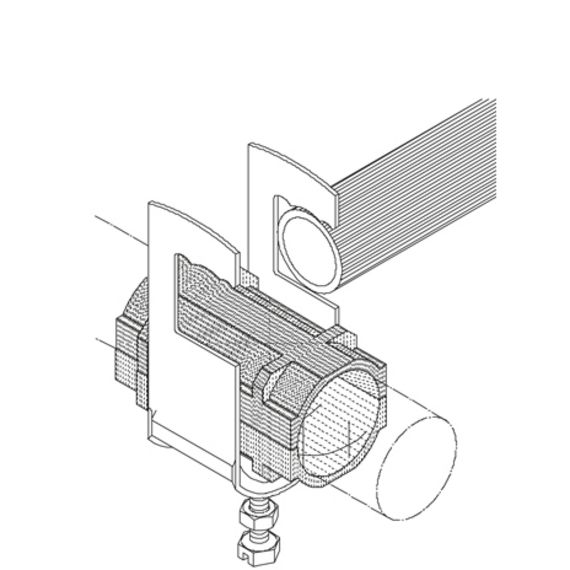

HF cable clamp with all-over vat made of galvanised steel and plastic half-vats made of polystyrene. For fastening to round and flat profiles with a material thickness of up to 22 mm.

Zinc coated

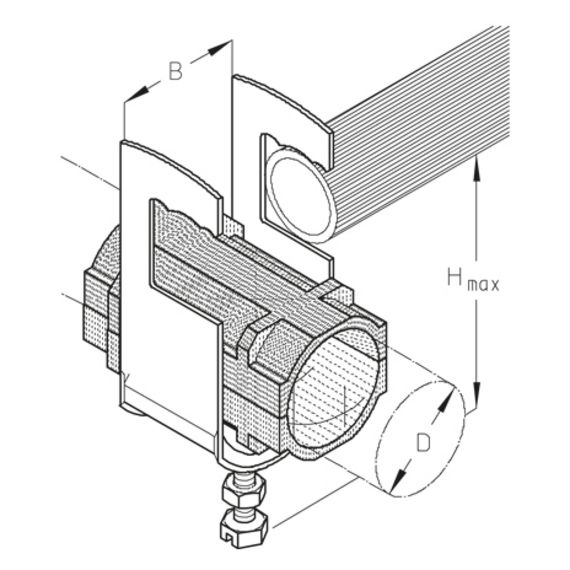

	width	diameter	H_maxMaximum height	number of cables Maximum number of installable cables	weight
20 RU-HW	20 mm	1/2 Zoll	53 mm	1	5.82 kg/100
32 RU-HW	32 mm	7/8 Zoll	68 mm	1	11.4 kg/100
44 RU-HW	44 mm	1 1/4 Zoll	83 mm	1	15.7 kg/100
56 RU-HW	56 mm	1 5/8 Zoll	106 mm	1	21.72 kg/100
20/2 RU-HW	20 mm	1/2 Zoll	73 mm	2	8.64 kg/100
32/2 RU-HW	32 mm	7/8 Zoll	102 mm	2	16.9 kg/100
44/2 RU-HW	44 mm	1 1/4 Zoll	129 mm	2	23.24 kg/100
56/2 RU-HW	56 mm	1 5/8 Zoll	164 mm	2	29.24 kg/100
20/3 RU-HW	20 mm	1/2 Zoll	93 mm	3	12.8 kg/100
32/3 RU-HW	32 mm	7/8 Zoll	136 mm	3	25 kg/100
44/3 RU-HW	44 mm	1 1/4 Zoll	176 mm	3	34.4 kg/100

Stainless steel, according to ASTM 304 / BS 304 S 3

	width	diameter	H_maxMaximum height	number of cables Maximum number of installable cables	weight
20 RU-HW-E	20 mm	1/2 Zoll	53 mm	1	5.72 kg/100
32 RU-HW-E	32 mm	7/8 Zoll	68 mm	1	11.1 kg/100
44 RU-HW-E	44 mm	1 1/4 Zoll	83 mm	1	14.6 kg/100
56 RU-HW-E	56 mm	1 5/8 Zoll	106 mm	1	18.5 kg/100
20/2 RU-HW-E	20 mm	1/2 Zoll	73 mm	2	7.94 kg/100
32/2 RU-HW-E	32 mm	7/8 Zoll	102 mm	2	16.7 kg/100
44/2 RU-HW-E	44 mm	1 1/4 Zoll	129 mm	2	22.6 kg/100
56/2 RU-HW-E	56 mm	1 5/8 Zoll	164 mm	2	29.3 kg/100
20/3 RU-HW-E	20 mm	1/2 Zoll	93 mm	3	10.4 kg/100
32/3 RU-HW-E	32 mm	7/8 Zoll	136 mm	3	22.1 kg/100
44/3 RU-HW-E	44 mm	1 1/4 Zoll	176 mm	3	30.6 kg/100
