AC-HW cable clamp for fastening to C-profile rails

Downloads

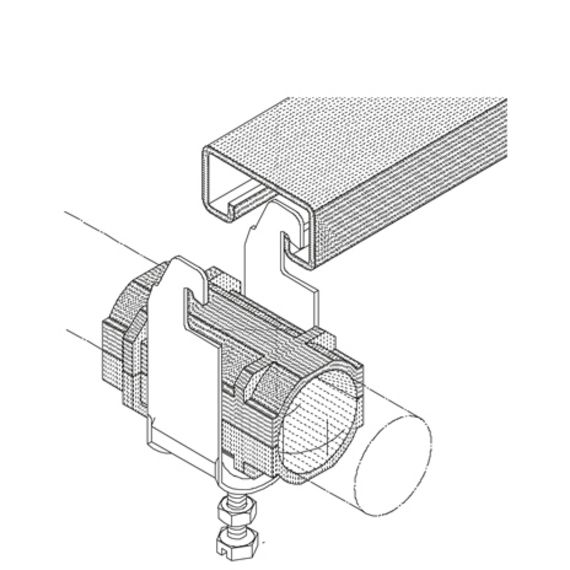

HF cable clamp with all-over vat made of galvanised steel and plastic half-vats made of polystyrene. For fastening to C-profile rails (C+, C60°) with a slot size of 18/22 mm.

Zinc coated

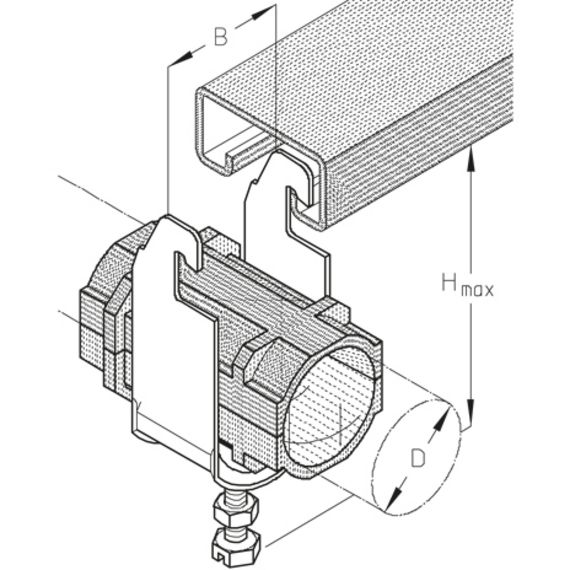

	width	diameter	H_maxMaximum height	number of cables Maximum number of installable cables	weight
20 AC-HW	20 mm	1/2 Zoll	53 mm	1	4.42 kg/100
32 AC-HW	32 mm	7/8 Zoll	68 mm	1	8.6 kg/100
44 AC-HW	44 mm	1 1/4 Zoll	83 mm	1	10.2 kg/100
56 AC-HW	56 mm	1 5/8 Zoll	106 mm	1	16.82 kg/100
20/2 AC-HW	20 mm	1/2 Zoll	73 mm	2	6.44 kg/100
32/2 AC-HW	32 mm	7/8 Zoll	102 mm	2	13.3 kg/100
44/2 AC-HW	44 mm	1 1/4 Zoll	129 mm	2	20.5 kg/100
56/2 AC-HW	56 mm	1 5/8 Zoll	164 mm	2	26.54 kg/100
20/3 AC-HW	20 mm	1/2 Zoll	93 mm	3	8.66 kg/100
32/3 AC-HW	32 mm	7/8 Zoll	136 mm	3	18 kg/100
44/3 AC-HW	44 mm	1 1/4 Zoll	176 mm	3	28.6 kg/100

Stainless steel, according to ASTM 304 / BS 304 S 3

	width	diameter	H_maxMaximum height	number of cables Maximum number of installable cables	weight
20 AC-HW-E	20 mm	1/2 Zoll	53 mm	1	4.12 kg/100
32 AC-HW-E	32 mm	7/8 Zoll	68 mm	1	7 kg/100
44 AC-HW-E	44 mm	1 1/4 Zoll	83 mm	1	12.3 kg/100
56 AC-HW-E	56 mm	1 5/8 Zoll	106 mm	1	16.1 kg/100
20/2 AC-HW-E	20 mm	1/2 Zoll	73 mm	2	6.14 kg/100
32/2 AC-HW-E	32 mm	7/8 Zoll	102 mm	2	11.7 kg/100
44/2 AC-HW-E	44 mm	1 1/4 Zoll	129 mm	2	19.1 kg/100
32/3 AC-HW-E	32 mm	7/8 Zoll	136 mm	3	15.9 kg/100
44/3 AC-HW-E	44 mm	1 1/4 Zoll	176 mm	3	26 kg/100
