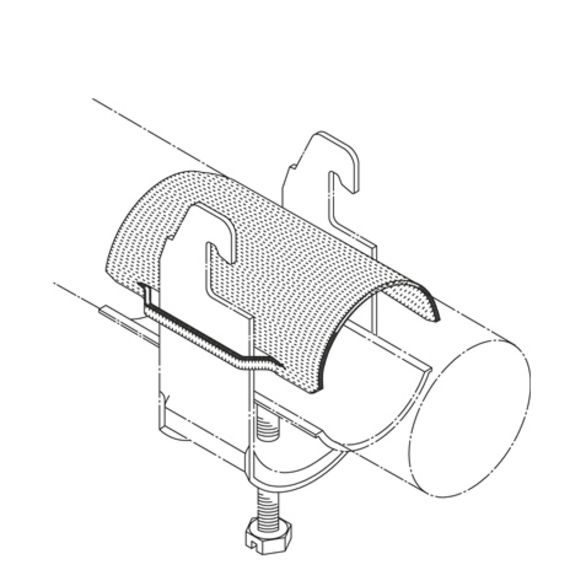

Counter trough to increase the support area of cables on profile.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

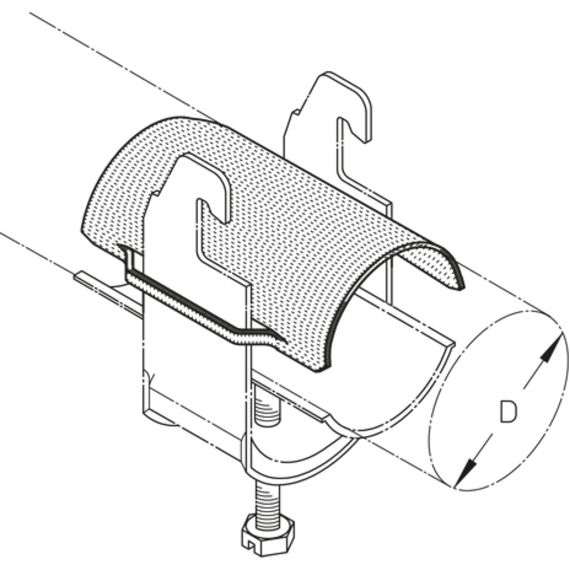

| diameter | weight | ||
|---|---|---|---|
| GW 76 | 71-76 mm | 6 kg/100 | |
| GW 82 | 77-82 mm | 6.4 kg/100 | |
| GW 88 | 83-88 mm | 6.8 kg/100 | |
| GW 94 | 89-94 mm | 12.3 kg/100 | |
| GW 100 | 95-100 mm | 13.2 kg/100 | |
| GW 110 | 101-110 mm | 14.6 kg/100 | |
| GW 120 | 111-120 mm | 16.3 kg/100 |
