Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

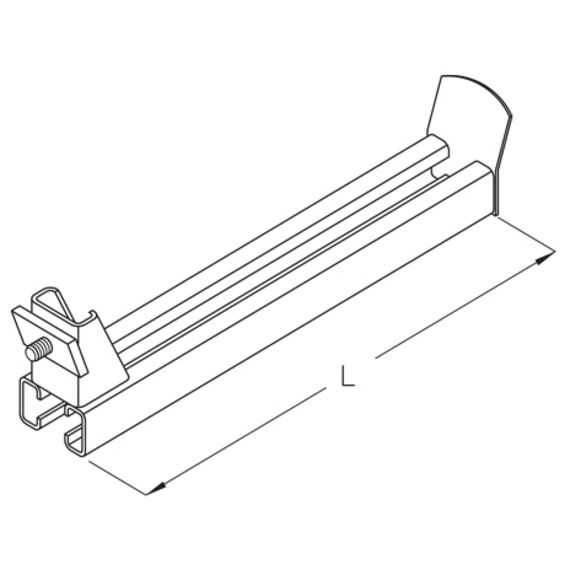

| length | loading | weight | ||
|---|---|---|---|---|
| T 20/AM18 | 200 mm | 3 kN | 0.5 kg | |
| T 25/AM18 | 250 mm | 2.4 kN | 0.58 kg | |
| T 30/AM18 | 300 mm | 2.0 kN | 0.66 kg | |
| T 35/AM18 | 350 mm | 1.7 kN | 0.74 kg | |
| T 40/AM18 | 400 mm | 1.5 kN | 0.84 kg | |
| T 45/AM18 | 450 mm | 1.4 kN | 0.93 kg | |
| T 50/AM18 | 500 mm | 1.2 kN | 1.00 kg | |
| T 60/AM18 | 600 mm | 1.0 kN | 1.18 kg |
