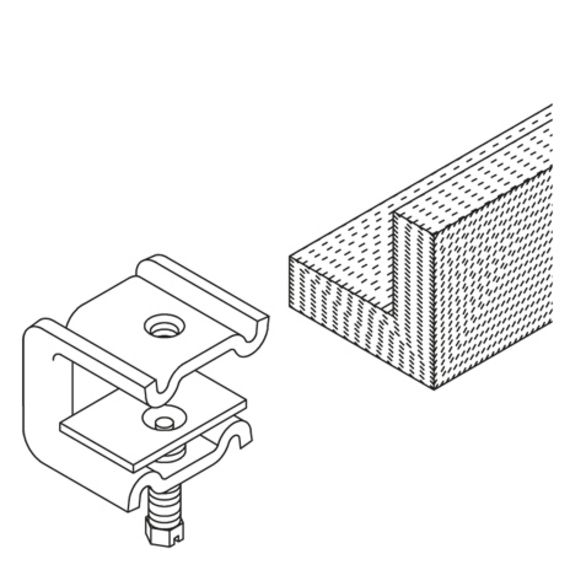

MKD beam clamp

Steel mounting clamp with riveted pressure plate for clamp fastening to steel beams.

This article is also available with lock nuts. This prevents unintentional loosening of the clamping.

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

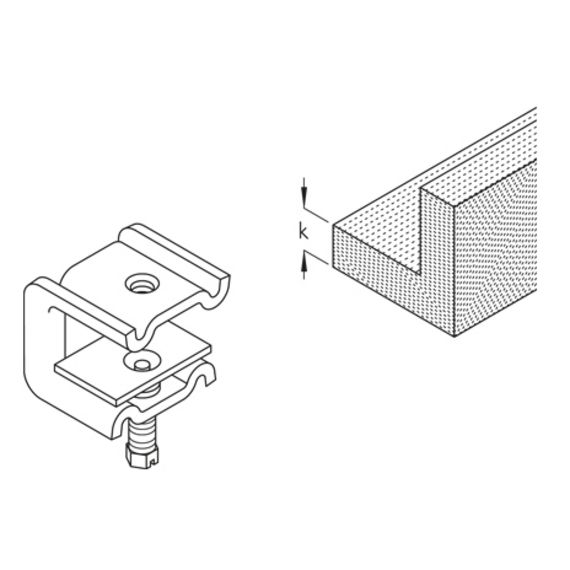

	width	diameter	k clamping range	loading	torque	weight
MKD 21	44 mm	M8 mm	6-21 mm	1.5 kN	4 Nm	19 kg/100
MKD 21 M6	44 mm	M6 mm	6-21 mm	1.5 kN	4 Nm	18 kg/100
MKD 21 M10	44 mm	M10 mm	6-21 mm	1.5 kN	4 Nm	17.3 kg/100
MKD 40	44 mm	M8 mm	20-40 mm	1.3 kN	4 Nm	20.4 kg/100

Stainless steel, according to ASTM 304 / BS 304 S 3

	width	diameter	k clamping range	loading	torque	weight
MKD 21E	44 mm	M8 mm	6-21 mm	1.5 kN	4 Nm	19 kg/100
MKD 21E M6	44 mm	M6 mm	6-21 mm	1.5 kN	4 Nm	18 kg/100
MKD 21E M10	44 mm	M10 mm	6-21 mm	1.5 kN	4 Nm	17.3 kg/100
MKD 40E	44 mm	M8 mm	20-40 mm	1.3 kN	4 Nm	19.3 kg/100

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

	width	diameter	k clamping range	loading	torque	weight
MKD 21E4	44 mm	M8 mm	6-21 mm	1.5 kN	4 Nm	19 kg/100
MKD 40E4	44 mm	M8 mm	20-40 mm	1.3 kN	4 Nm	19.3 kg/100
