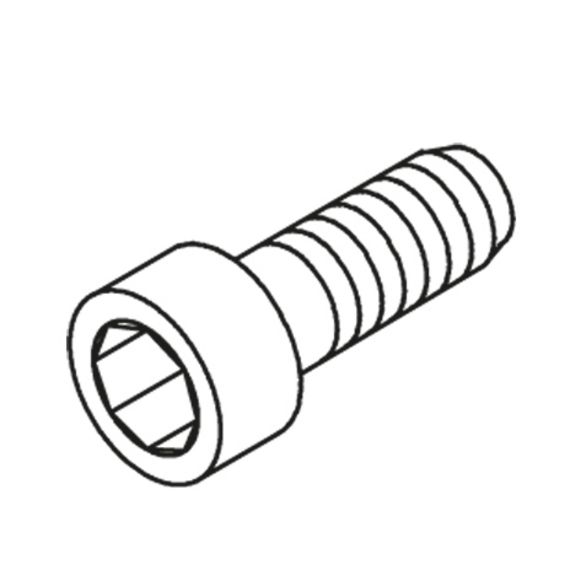

IK hexagon socket head screw, DIN 912

Downloads

galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

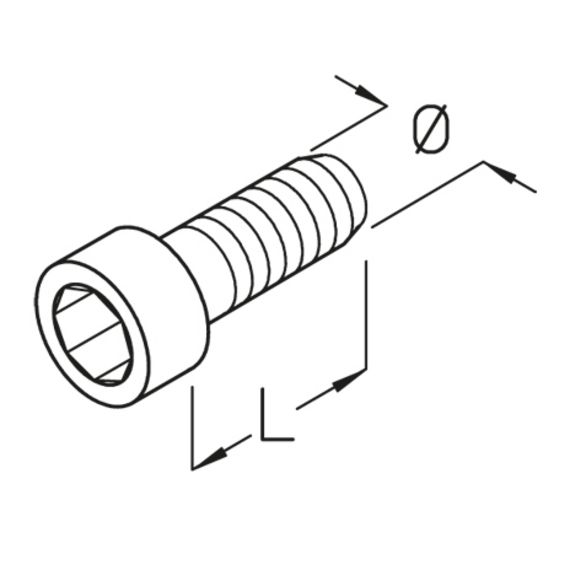

	length	diameter	diameter	IK internal hexagon	weight
IK 5X10	10 mm	8.3 mm	5 mm	4 mm	0.5 kg/100
IK 5X40	40 mm	8.3 mm	5 mm	4 mm	1.9 kg/100
IK 6X20	20 mm	10.2 mm	6 mm	5 mm	0.7 kg/100
IK 8X20	20 mm	13.3 mm	8 mm	6 mm	1.3 kg/100
IK 8X25	25 mm	13.3 mm	8 mm	6 mm	1.5 kg/100
IK 8X30	30 mm	13.3 mm	8 mm	6 mm	1.7 kg/100
IK 8X40	40 mm	13.3 mm	8 mm	6 mm	2.1 kg/100
IK 10X20	20 mm	16.3 mm	10 mm	8 mm	2.3 kg/100
IK 10X25	25 mm	16.3 mm	10 mm	8 mm	2.5 kg/100
IK 10X30	30 mm	16.3 mm	10 mm	8 mm	2.8 kg/100
IK 10X40	40 mm	16.3 mm	10 mm	8 mm	3.3 kg/100
IK 12X20	20 mm	18.3 mm	12 mm	10 mm	3.2 kg/100
IK 12X25	25 mm	18.3 mm	12 mm	10 mm	3.6 kg/100
IK 12X30	30 mm	18.3 mm	12 mm	10 mm	3.9 kg/100
IK 12X40	40 mm	18.3 mm	12 mm	10 mm	4.7 kg/100
IK 12X50	50 mm	18.3 mm	12 mm	10 mm	5.5 kg/100

Stainless steel, according to ASTM 304 / BS 304 S 3

	length	diameter	diameter	IK internal hexagon	weight
IK 8X10E	10 mm	13.3 mm	8 mm	6 mm	1 kg/100
IK 8X16E	16 mm	13.3 mm	8 mm	6 mm	1,2 kg/100
IK 8X20E	20 mm	13.3 mm	8 mm	6 mm	1.3 kg/100
IK 8X25E	25 mm	13.3 mm	8 mm	6 mm	1.3 kg/100
IK 8X30E	30 mm	13.3 mm	8 mm	6 mm	1.7 kg/100
IK 8X40E	40 mm	13.3 mm	8 mm	6 mm	2.1 kg/100
IK 8X50E	50 mm	13.3 mm	8 mm	6 mm	2.5 kg/100
IK 10X20E	20 mm	16.3 mm	10 mm	8 mm	2.3 kg/100
IK 10X25E	25 mm	16.3 mm	10 mm	8 mm	2.5 kg/100
IK 10X30E	30 mm	16.3 mm	10 mm	8 mm	2.8 kg/100
IK 10X40E	40 mm	16.3 mm	10 mm	8 mm	3.3 kg/100
IK 12X20E	20 mm	18.3 mm	12 mm	10 mm	3.2 kg/100
IK 12X25E	25 mm	18.3 mm	12 mm	10 mm	3.6 kg/100
IK 12X30E	30 mm	18.3 mm	12 mm	10 mm	3.9 kg/100
IK 12X40E	40 mm	18.3 mm	12 mm	10 mm	4.7 kg/100
IK 12X50E	50 mm	18.3 mm	12 mm	10 mm	5.5 kg/100
