U cable clamp for fastening to flat sections

Downloads

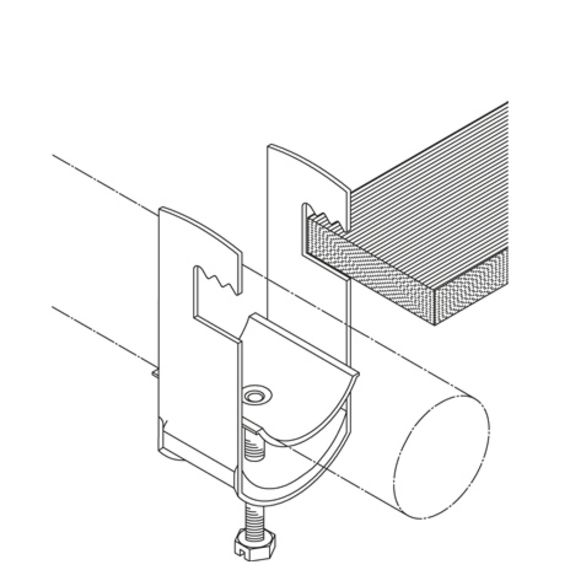

Cable clamp with full-surface vat made of galvanised steel. For fastening to flat profiles with a material thickness of up to 12 mm.

Zinc coated

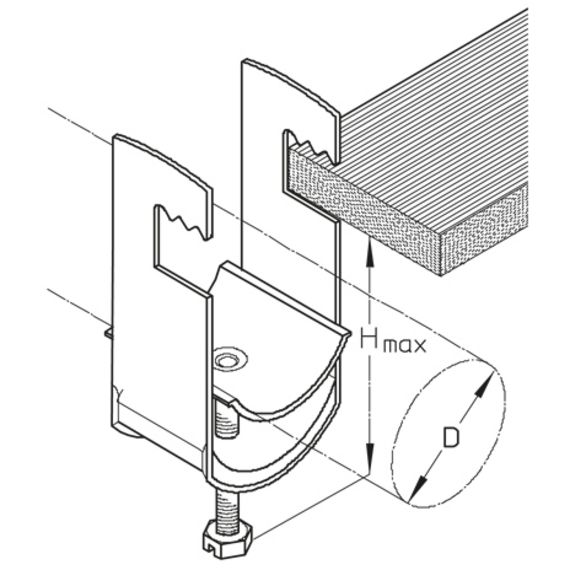

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 U	8-12 mm	41 mm	2 Nm	1	3.1 kg/100
16 U	12-16 mm	46 mm	2 Nm	1	3.4 kg/100
20 U	16-20 mm	50 mm	2 Nm	1	3.8 kg/100
24 U	20-24 mm	54 mm	2 Nm	1	4.3 kg/100
28 U	24-28 mm	58 mm	2 Nm	1	4.5 kg/100
32 U	28-32 mm	63 mm	2 Nm	1	7.1 kg/100
36 U	32-36 mm	67 mm	2 Nm	1	7.5 kg/100
40 U	36-40 mm	71 mm	2 Nm	1	8.1 kg/100
44 U	40-44 mm	81 mm	4 Nm	1	10.5 kg/100
48 U	44-48 mm	85 mm	4 Nm	1	10.8 kg/100
52 U	48-52 mm	90 mm	4 Nm	1	11.5 kg/100
56 U	52-56 mm	94 mm	4 Nm	1	12.2 kg/100
60 U	56-60 mm	98 mm	4 Nm	1	16.8 kg/100
64 U	60-64 mm	102 mm	4 Nm	1	17.4 kg/100
70 U	64-70 mm	109 mm	4 Nm	1	18.5 kg/100
76 U	70-76 mm	113 mm	4 Nm	1	24.8 kg/100
82 U	76-82 mm	119 mm	4 Nm	1	27.2 kg/100
88 U	82-88 mm	125 mm	4 Nm	1	28.3 kg/100
94 U	88-94 mm	131 mm	4 Nm	1	31 kg/100
100 U	94-100 mm	137 mm	4 Nm	1	33.6 kg/100
110 U	100-110 mm	157 mm	4 Nm	1	35.6 kg/100
120 U	110-120 mm	167 mm	4 Nm	1	38.4 kg/100
150 U	145-150 mm	203 mm	6 Nm	1	108.2 kg/100
175 U	170-175 mm	228 mm	6 Nm	1	133.1 kg/100
12/2 U	8-12 mm	58 mm	2 Nm	2	3.9 kg/100
16/2 U	12-16 mm	67 mm	2 Nm	2	4.4 kg/100
20/2 U	16-20 mm	75 mm	2 Nm	2	5 kg/100
24/2 U	20-24 mm	84 mm	2 Nm	2	5.7 kg/100
28/2 U	24-28 mm	92 mm	2 Nm	2	6.1 kg/100
32/2 U	28-32 mm	101 mm	2 Nm	2	9.7 kg/100
36/2 U	32-36 mm	109 mm	2 Nm	2	10.6 kg/100
40/2 U	36-40 mm	117 mm	2 Nm	2	11.5 kg/100
44/2 U	40-44 mm	127 mm	4 Nm	2	13.4 kg/100
48/2 U	44-48 mm	135 mm	4 Nm	2	14.9 kg/100
52/2 U	48-52 mm	144 mm	4 Nm	2	15.8 kg/100
56/2 U	52-56 mm	152 mm	4 Nm	2	17 kg/100
12/3 U	8-12 mm	71 mm	2 Nm	3	4.5 kg/100
16/3 U	12-16 mm	85 mm	2 Nm	3	5.4 kg/100
20/3 U	16-20 mm	97 mm	2 Nm	3	6.2 kg/100
24/3 U	20-24 mm	110 mm	2 Nm	3	7.1 kg/100
28/3 U	24-28 mm	122 mm	2 Nm	3	7.9 kg/100

Aluminium

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 U-AL	8-12 mm	41 mm	1.5 Nm	1	1.7 kg/100
16 U-AL	12-16 mm	46 mm	1.5 Nm	1	2.0 kg/100
20 U-AL	16-20 mm	50 mm	1.5 Nm	1	2.3 kg/100
24 U-AL	20-24 mm	54 mm	1.5 Nm	1	2.5 kg/100
28 U-AL	24-28 mm	58 mm	1.5 Nm	1	2.8 kg/100
32 U-AL	28-32 mm	63 mm	1.5 Nm	1	4.1 kg/100
36 U-AL	32-36 mm	67 mm	1.5 Nm	1	4.5 kg/100
40 U-AL	36-40 mm	71 mm	1.5 Nm	1	4.9 kg/100
44 U-AL	40-44 mm	81 mm	3 Nm	1	5.2 kg/100
48 U-AL	44-48 mm	85 mm	3 Nm	1	5.5 kg/100
52 U-AL	48-52 mm	90 mm	3 Nm	1	6.1 kg/100
56 U-AL	52-56 mm	94 mm	3 Nm	1	6.5 kg/100

Stainless steel, according to ASTM 304 / BS 304 S 3

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 U-E	8-12 mm	41 mm	2 Nm	1	2.9 kg/100
16 U-E	12-16 mm	46 mm	2 Nm	1	3.3 kg/100
20 U-E	16-20 mm	50 mm	2 Nm	1	3.7 kg/100
24 U-E	20-24 mm	54 mm	2 Nm	1	4 kg/100
28 U-E	24-28 mm	58 mm	2 Nm	1	4.4 kg/100
32 U-E	28-32 mm	63 mm	2 Nm	1	5.4 kg/100
36 U-E	32-36 mm	67 mm	2 Nm	1	6.7 kg/100
40 U-E	36-40 mm	71 mm	2 Nm	1	7.6 kg/100
44 U-E	40-44 mm	81 mm	4 Nm	1	9.3 kg/100
48 U-E	44-48 mm	85 mm	4 Nm	1	9.9 kg/100
52 U-E	48-52 mm	90 mm	4 Nm	1	11 kg/100
56 U-E	52-56 mm	94 mm	4 Nm	1	11.3 kg/100
