S-IW cable clamp with additional insulating vat for fastening to angle profiles

Downloads

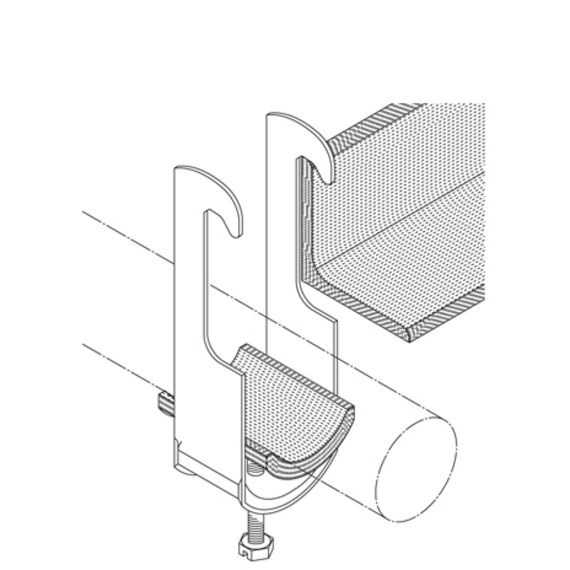

Cable clamp with full-surface vat made of galvanised steel and additional insulating vat made of polystyrene. For fastening to angle profiles with a side length of up to max. 43 mm.

Zinc coated

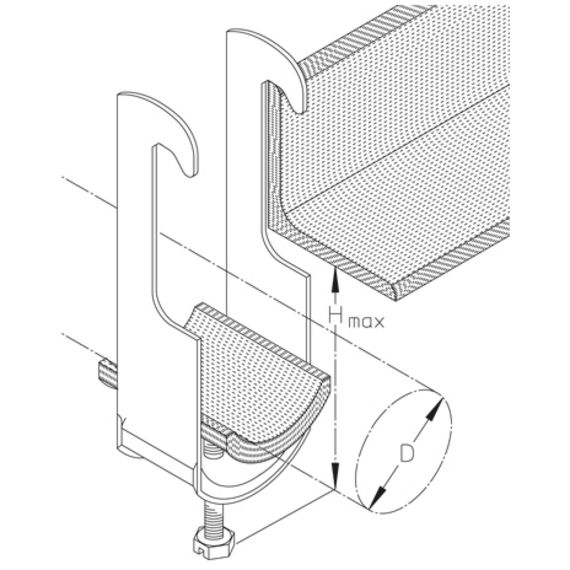

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 S-IW	8-12 mm	42.5 mm	2 Nm	1	3.8 kg/100
16 S-IW	12-16 mm	47.5 mm	2 Nm	1	4.3 kg/100
20 S-IW	16-20 mm	51.5 mm	2 Nm	1	4.8 kg/100
24 S-IW	20-24 mm	55.7 mm	2 Nm	1	5.1 kg/100
28 S-IW	24-28 mm	59.7 mm	2 Nm	1	5.5 kg/100
32 S-IW	28-32 mm	65 mm	2 Nm	1	8.3 kg/100
36 S-IW	32-36 mm	69 mm	2 Nm	1	8.9 kg/100
40 S-IW	36-40 mm	73 mm	2 Nm	1	9.3 kg/100
44 S-IW	40-44 mm	83 mm	4 Nm	1	11.8 kg/100
48 S-IW	44-48 mm	87 mm	4 Nm	1	12.4 kg/100
52 S-IW	48-52 mm	92.5 mm	4 Nm	1	13.3 kg/100
56 S-IW	52-56 mm	96.5 mm	4 Nm	1	14 kg/100
60 S-IW	56-60 mm	100.5 mm	4 Nm	1	18.4 kg/100
64 S-IW	60-64 mm	104.5 mm	4 Nm	1	19.1 kg/100
70 S-IW	64-70 mm	111.5 mm	4 Nm	1	20.2 kg/100
