S cable clamp for fastening to angle profiles

Downloads

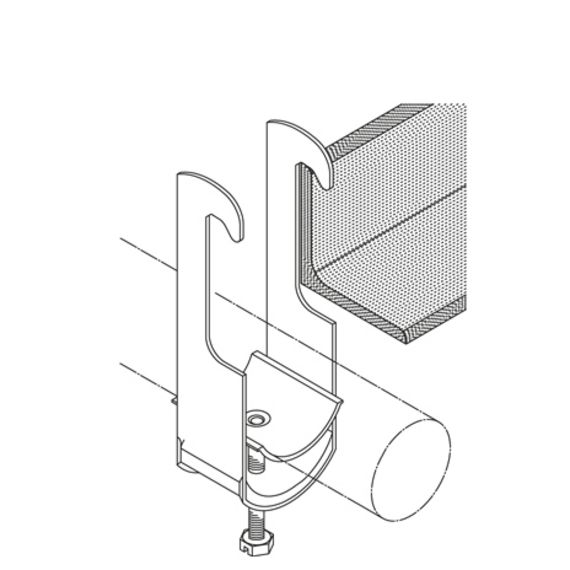

Cable clamp with full-surface vat made of galvanised steel. For fastening to angle profiles with a side length of up to max. 43 mm.

Articles with a diameter of 12-56mm are also available in stainless steel finish, material No. 1.4571 / 1.4404 (V4A).

Zinc coated

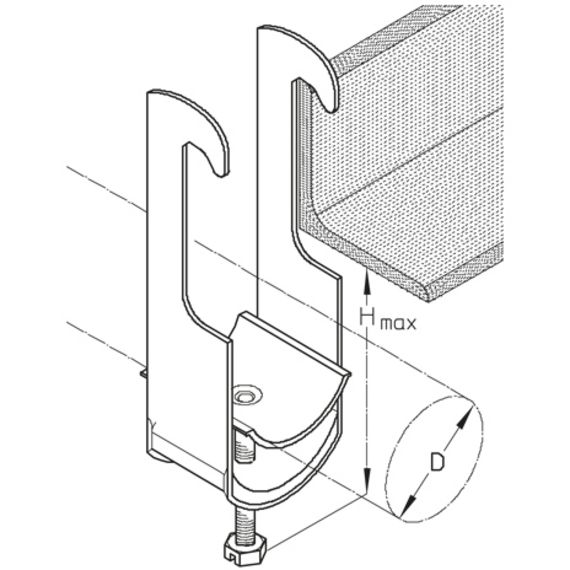

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 S	8-12 mm	41 mm	2 Nm	1	3.6 kg/100
16 S	12-16 mm	46 mm	2 Nm	1	4.1 kg/100
20 S	16-20 mm	50 mm	2 Nm	1	4.6 kg/100
24 S	20-24 mm	54 mm	2 Nm	1	4.8 kg/100
28 S	24-28 mm	58 mm	2 Nm	1	5.3 kg/100
32 S	28-32 mm	63 mm	2 Nm	1	7.9 kg/100
36 S	32-36 mm	67 mm	2 Nm	1	8.4 kg/100
40 S	36-40 mm	71 mm	2 Nm	1	9 kg/100
44 S	40-44 mm	81 mm	4 Nm	1	11.2 kg/100
48 S	44-48 mm	85 mm	4 Nm	1	11.7 kg/100
52 S	48-52 mm	90 mm	4 Nm	1	12.4 kg/100
56 S	52-56 mm	94 mm	4 Nm	1	12.9 kg/100
60 S	56-60 mm	98 mm	4 Nm	1	17.2 kg/100
64 S	60-64 mm	102 mm	4 Nm	1	17.7 kg/100
70 S	64-70 mm	109 mm	4 Nm	1	18.6 kg/100
76 S	70-76 mm	113 mm	4 Nm	1	25.3 kg/100
82 S	76-82 mm	119 mm	4 Nm	1	28.5 kg/100
88 S	82-88 mm	125 mm	4 Nm	1	29.4 kg/100
94 S	88-94 mm	131 mm	4 Nm	1	33.2 kg/100
100 S	94-100 mm	137 mm	4 Nm	1	34.8 kg/100
110 S	100-110 mm	157 mm	4 Nm	1	38.2 kg/100
120 S	110-120 mm	167 mm	4 Nm	1	40.3 kg/100
150 S	145-150 mm	203 mm	6 Nm	1	107.7 kg/100
175 S	170-175 mm	228 mm	6 Nm	1	128 kg/100
12/2 S	8-12 mm	58 mm	2 Nm	2	4.2 kg/100
16/2 S	12-16 mm	67 mm	2 Nm	2	4.9 kg/100
20/2 S	16-20 mm	75 mm	2 Nm	2	5.7 kg/100
24/2 S	20-24 mm	84 mm	2 Nm	2	6.2 kg/100
28/2 S	24-28 mm	92 mm	2 Nm	2	6.7 kg/100
32/2 S	28-32 mm	101 mm	2 Nm	2	10.3 kg/100
36/2 S	32-36 mm	109 mm	2 Nm	2	11.3 kg/100
40/2 S	36-40 mm	117 mm	2 Nm	2	12 kg/100
44/2 S	40-44 mm	127 mm	4 Nm	2	15.2 kg/100
48/2 S	44-48 mm	135 mm	4 Nm	2	16.6 kg/100
52/2 S	48-52 mm	144 mm	4 Nm	2	16.9 kg/100
56/2 S	52-56 mm	152 mm	4 Nm	2	18.2 kg/100
12/3 S	8-12 mm	71 mm	2 Nm	3	5.2 kg/100
16/3 S	12-16 mm	85 mm	2 Nm	3	5.9 kg/100
20/3 S	16-20 mm	97 mm	2 Nm	3	6.6 kg/100
24/3 S	20-24 mm	110 mm	2 Nm	3	7.5 kg/100
28/3 S	24-28 mm	122 mm	2 Nm	3	8.4 kg/100

Aluminium

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 S-AL	8-12 mm	41 mm	1.5 Nm	1	2.2 kg/100
16 S-AL	12-16 mm	46 mm	1.5 Nm	1	2.6 kg/100
20 S-AL	16-20 mm	50 mm	1.5 Nm	1	3.2 kg/100
24 S-AL	20-24 mm	54 mm	1.5 Nm	1	3.6 kg/100
28 S-AL	24-28 mm	58 mm	1.5 Nm	1	3.9 kg/100
32 S-AL	28-32 mm	63 mm	1.5 Nm	1	5.5 kg/100
36 S-AL	32-36 mm	67 mm	1.5 Nm	1	6.3 kg/100
40 S-AL	36-40 mm	71 mm	1.5 Nm	1	6.9 kg/100
44 S-AL	40-44 mm	81 mm	3 Nm	1	7.5 kg/100
48 S-AL	44-48 mm	85 mm	3 Nm	1	8.1 kg/100
52 S-AL	48-52 mm	90 mm	3 Nm	1	10.4 kg/100
56 S-AL	52-56 mm	94 mm	3 Nm	1	11.2 kg/100

Stainless steel, according to ASTM 304 / BS 304 S 3

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 S-E	8-12 mm	41 mm	2 Nm	1	3.5 kg/100
16 S-E	12-16 mm	46 mm	2 Nm	1	3.8 kg/100
20 S-E	16-20 mm	50 mm	2 Nm	1	4.2 kg/100
24 S-E	20-24 mm	54 mm	2 Nm	1	4.6 kg/100
28 S-E	24-28 mm	58 mm	2 Nm	1	5 kg/100
32 S-E	28-32 mm	63 mm	2 Nm	1	6.6 kg/100
36 S-E	32-36 mm	67 mm	2 Nm	1	7.5 kg/100
40 S-E	36-40 mm	71 mm	2 Nm	1	8.4 kg/100
44 S-E	40-44 mm	81 mm	4 Nm	1	9.6 kg/100
48 S-E	44-48 mm	85 mm	4 Nm	1	10.5 kg/100
52 S-E	48-52 mm	90 mm	4 Nm	1	11.5 kg/100
56 S-E	52-56 mm	94 mm	4 Nm	1	12.2 kg/100
