ACF-E cable clamp for fastening to C-profile rails

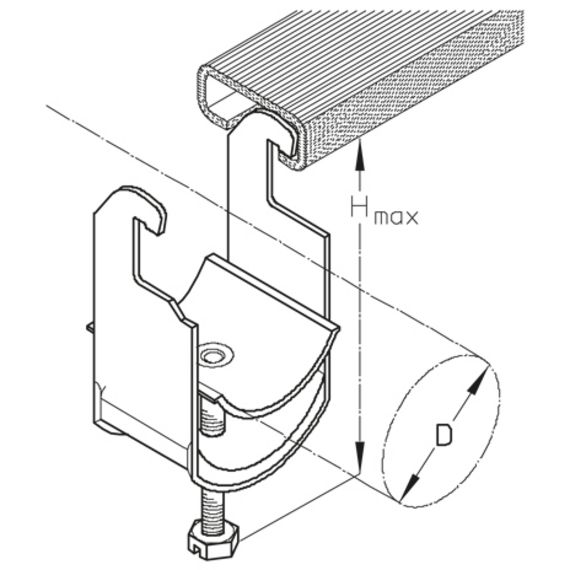

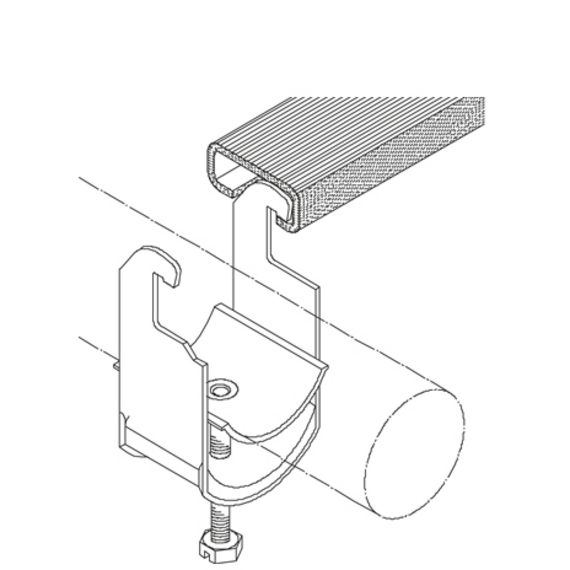

Cable clamp with full-surface vat made of high-grade steel. For fastening to C-profile rails (C) with a slot size > 10 mm.

Stainless steel, according to ASTM 304 / BS 304 S 3

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 ACF-E	8-12 mm	41 mm	2 Nm	1	2.4 kg/100
16 ACF-E	12-16 mm	46 mm	2 Nm	1	2.8 kg/100
20 ACF-E	16-20 mm	50 mm	2 Nm	1	3.1 kg/100
24 ACF-E	20-24 mm	54 mm	2 Nm	1	3.5 kg/100
28 ACF-E	24-28 mm	58 mm	2 Nm	1	3.9 kg/100
32 ACF-E	28-32 mm	63 mm	2 Nm	1	4.9 kg/100
36 ACF-E	32-36 mm	67 mm	2 Nm	1	5.8 kg/100
40 ACF-E	36-40 mm	71 mm	2 Nm	1	6.5 kg/100
44 ACF-E	40-44 mm	81 mm	4 Nm	1	7.4 kg/100
48 ACF-E	44-48 mm	85 mm	4 Nm	1	8.9 kg/100
52 ACF-E	48-52 mm	90 mm	4 Nm	1	9.9 kg/100
56 ACF-E	52-56 mm	94 mm	4 Nm	1	10.2 kg/100
12/2 ACF-E	8-12 mm	58 mm	2 Nm	2	3.1 kg/100
16/2 ACF-E	12-16 mm	67 mm	2 Nm	2	3.7 kg/100
20/2 ACF-E	16-20 mm	75 mm	2 Nm	2	4.2 kg/100
24/2 ACF-E	20-24 mm	84 mm	2 Nm	2	4.8 kg/100
28/2 ACF-E	24-28 mm	92 mm	2 Nm	2	5.5 kg/100
32/2 ACF-E	28-32 mm	101 mm	2 Nm	2	7.3 kg/100
36/2 ACF-E	32-36 mm	109 mm	2 Nm	2	8.1 kg/100
40/2 ACF-E	36-40 mm	117 mm	2 Nm	2	9.4 kg/100
44/2 ACF-E	40-44 mm	127 mm	4 Nm	2	11.7 kg/100
48/2 ACF-E	44-48 mm	135 mm	4 Nm	2	12.8 kg/100
52/2 ACF-E	48-52 mm	144 mm	4 Nm	2	13.8 kg/100
56/2 ACF-E	52-56 mm	152 mm	4 Nm	2	15.4 kg/100
