AC-IW cable clamp with additional insulating vat for fastening to C-profile rails

Downloads

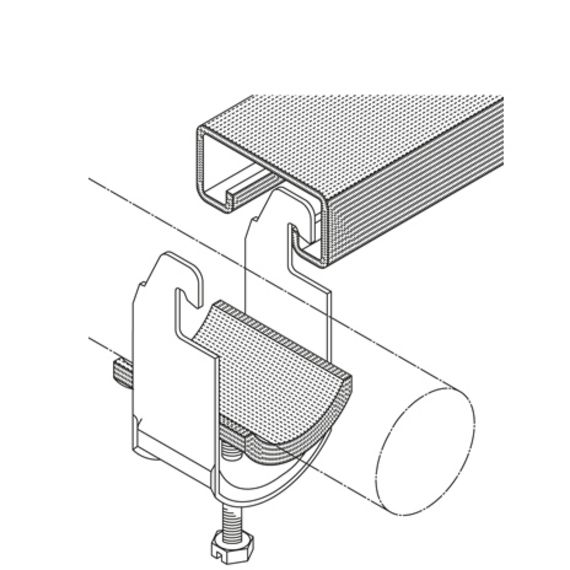

Cable clamp with full-surface vat made of galvanised steel and additional insulating vat made of polystyrene. For fastening to C-profile rails (C+, C60°) with a slot size of 18/22 mm.

Zinc coated

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 AC-IW	8-12 mm	42.5 mm	2 Nm	1	2.8 kg/100
16 AC-IW	12-16 mm	47.5 mm	2 Nm	1	3.2 kg/100
20 AC-IW	16-20 mm	51.5 mm	2 Nm	1	3.6 kg/100
24 AC-IW	20-24 mm	55.7 mm	2 Nm	1	4.2 kg/100
28 AC-IW	24-28 mm	59.7 mm	2 Nm	1	4.5 kg/100
32 AC-IW	28-32 mm	65 mm	2 Nm	1	7.1 kg/100
36 AC-IW	32-36 mm	69 mm	2 Nm	1	7.5 kg/100
40 AC-IW	36-40 mm	73 mm	2 Nm	1	8.2 kg/100
44 AC-IW	40-44 mm	83 mm	4 Nm	1	10.2 kg/100
48 AC-IW	44-48 mm	87 mm	4 Nm	1	10.6 kg/100
52 AC-IW	48-52 mm	92.5 mm	4 Nm	1	11.6 kg/100
56 AC-IW	52-56 mm	96.5 mm	4 Nm	1	12.2 kg/100
60 AC-IW	56-60 mm	100.5 mm	4 Nm	1	15.9 kg/100
64 AC-IW	60-64 mm	104.5 mm	4 Nm	1	17.5 kg/100
70 AC-IW	64-70 mm	111.5 mm	4 Nm	1	18.6 kg/100
